FRONT CONSOLE DISASSEMBLY/ASSEMBLY

id091700457600

1.  Remove the commander switch. (See COMMANDER SWITCH REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

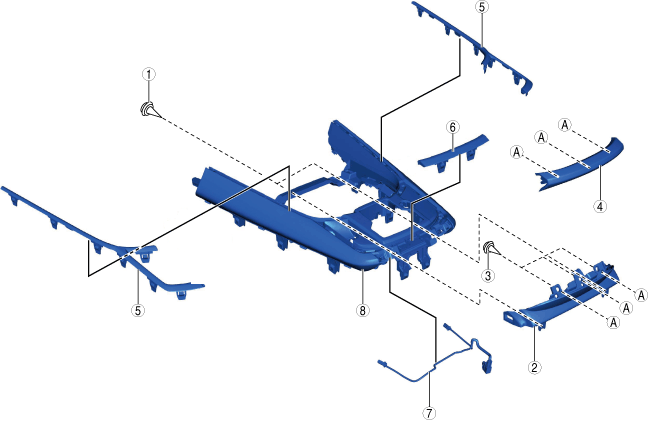

ac9uuw00007472

1
Screw A
2
Front console cover
3
Screw B
4
Protector
5
Side plate
6
Center plate
7
Short code
8
Front console panel

3.  Assemble in the reverse order of disassembly.
