GLOVE COMPARTMENT REMOVAL/INSTALLATION

id091700601000

1.  Open the glove compartment.

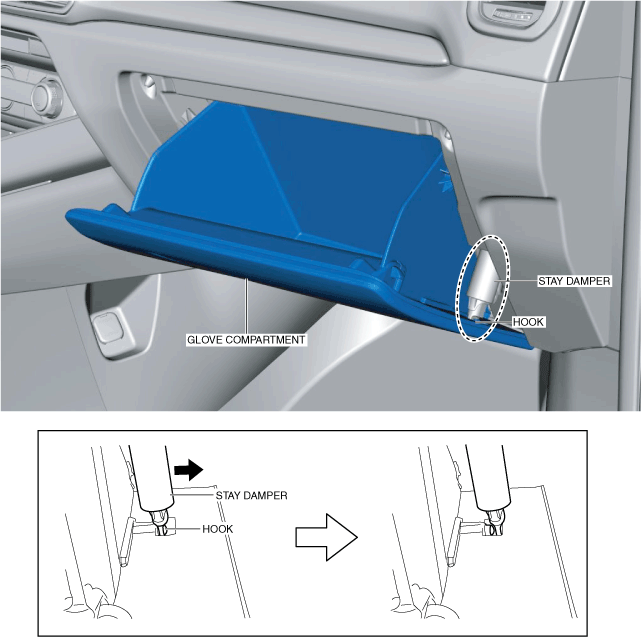

2.  Pull the stay damper in the direction of the arrow shown in the figure and remove the hook.

Caution

•  If the glove compartment is closed without being joined to the stay damper, the stay damper may be damaged. Verify that the stay damper is joined to the glove compartment before closing the glove compartment.

ac9wzw00003343

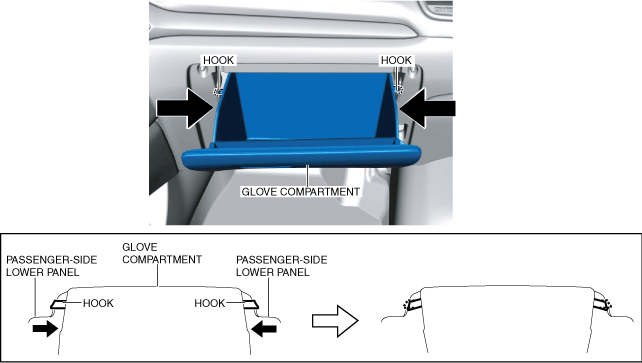

3.  Push the glove compartment ends in the direction of the arrows and remove the hooks.

ac9wzw00003344

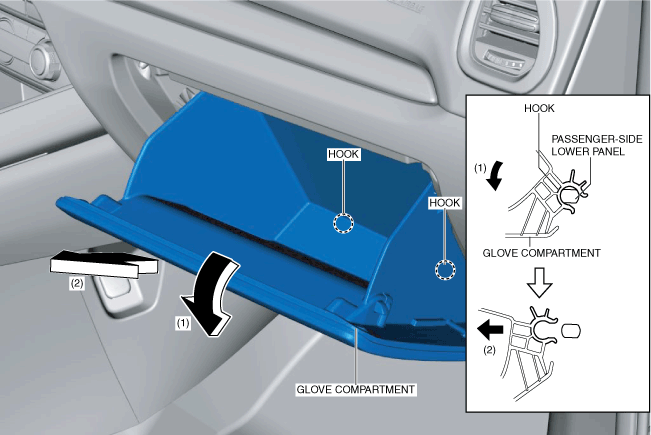

4.  Pull down the glove compartment in the direction of arrow (1).

ac9uuw00005373

5.  Pull the glove compartment in the direction of arrow (2) and remove it while detaching the hooks.
