SPEAKER GRILLE REMOVAL/INSTALLATION


id091700601400


Center Speaker Grille

Caution
•  If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

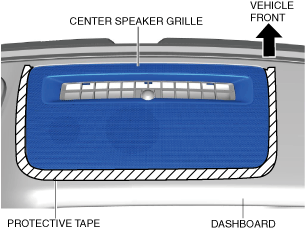

1.  To prevent scratches or damage, affix protective tape to the position shown in the figure of the dashboard.

ac9uuw00005605

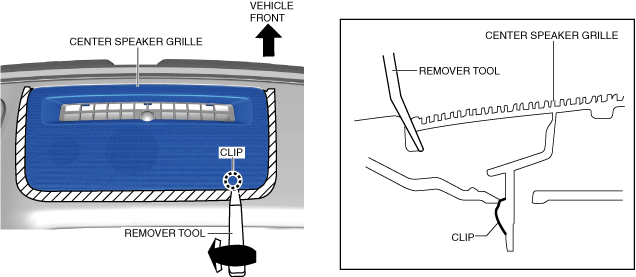

2.  To detach the clip from the dashboard, insert the remover tool into the clearance between the center speaker grille and dashboard.

ac9uuw00007448

3.  Move the remover tool in the direction of the arrow shown in the figure and detach the clip from the dashboard.

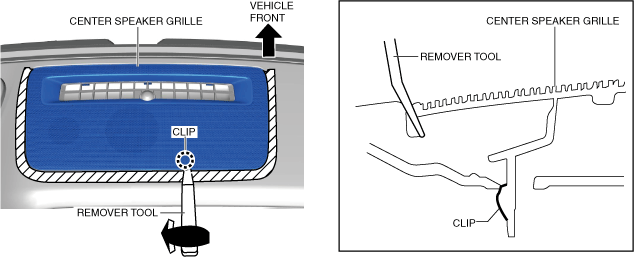

4.  To detach the clip from the dashboard, insert the remover tool into the clearance between the center speaker grille and dashboard.

ac9uuw00007449

5.  Move the remover tool in the direction of the arrow shown in the figure and detach the clip from the dashboard.

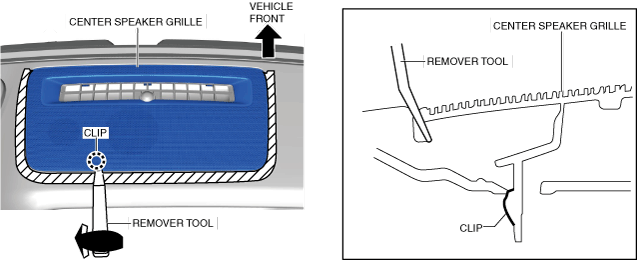

6.  To detach the clip from the dashboard, insert the remover tool into the clearance between the center speaker grille and dashboard.

ac9uuw00007450

7.  Move the remover tool in the direction of the arrow shown in the figure and detach the clip from the dashboard.

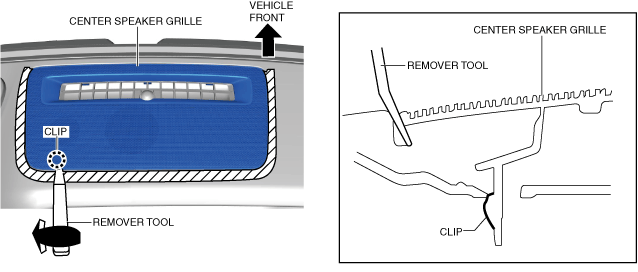

8.  To detach the clip from the dashboard, insert the remover tool into the clearance between the center speaker grille and dashboard.

ac9uuw00007451

9.  Move the remover tool in the direction of the arrow shown in the figure and detach the clip from the dashboard.

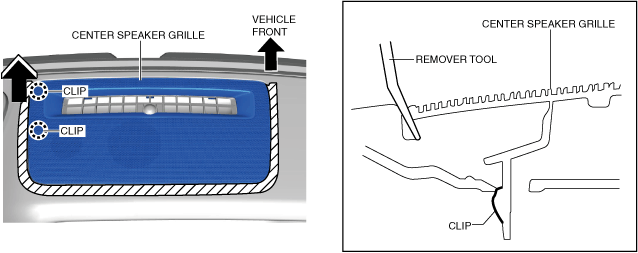

10.  Using the remover tool, remove the center speaker grille in the direction of the arrow shown in the figure while detaching the clips.

ac9wzw00004280

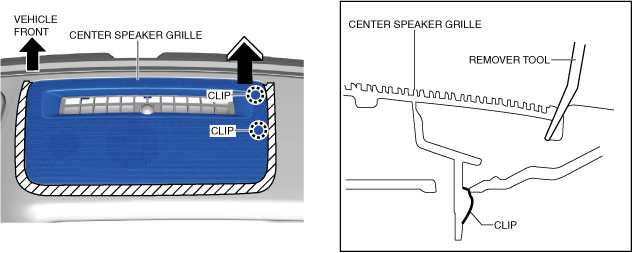

11.  Using the remover tool, remove the center speaker grille in the direction of the arrow shown in the figure while detaching the clips.

ac9wzw00004281

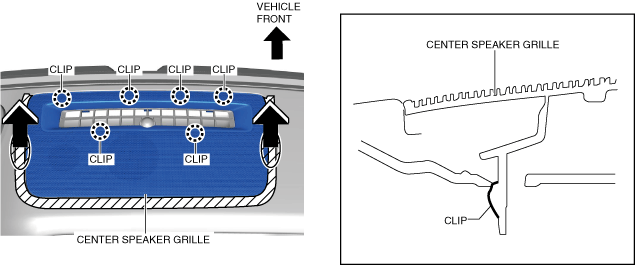

12.  Hold the shaded area of the center speaker grille, move the center speaker grille in the direction of the arrows, and remove the center speaker grille while detaching the clips.

ac9wzw00004282

13.  Install in the reverse order of removal.


Side Speaker Grille

Caution
•  If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

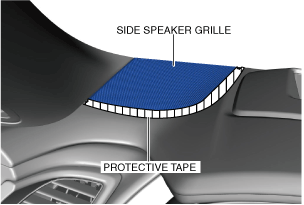

1.  To prevent scratches or damage, affix protective tape to the position shown in the figure of the dashboard.

ac9wzw00004897

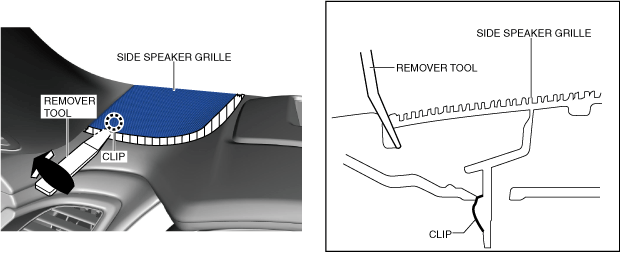

2.  To detach the clip from the dashboard, insert the remover tool into the clearance between the side speaker grille and dashboard.

ac9uuw00007453

3.  Move the remover tool in the direction of the arrow shown in the figure and detach the clip from the dashboard.

4.  To detach the clip from the dashboard, insert the remover tool into the clearance between the side speaker grille and dashboard.

ac9uuw00007454

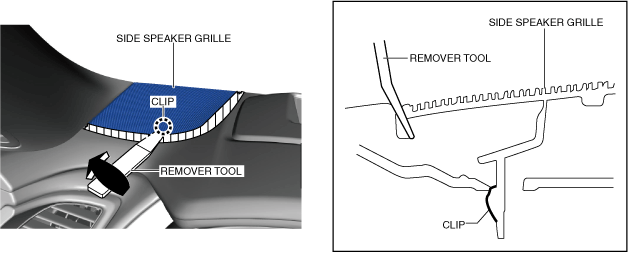

5.  Move the remover tool in the direction of the arrow shown in the figure and detach the clip from the dashboard.

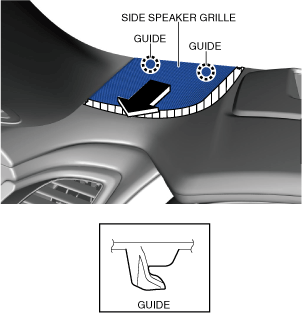

6.  Move the side speaker grille in the direction of the arrow shown in the figure and remove it while pulling out the guides.

ac9wzw00004898

7.  Install in the reverse order of removal.


Rear Speaker Grille

Caution
•  If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when the it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

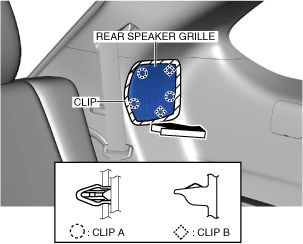

1.  Using the remover tool, remove the rear speaker grille while detaching clips A and B.

ac9uuw00005846

2.  Install in the reverse order of removal.
