REAR CONSOLE DISASSEMBLY/ASSEMBLY
id091700602100

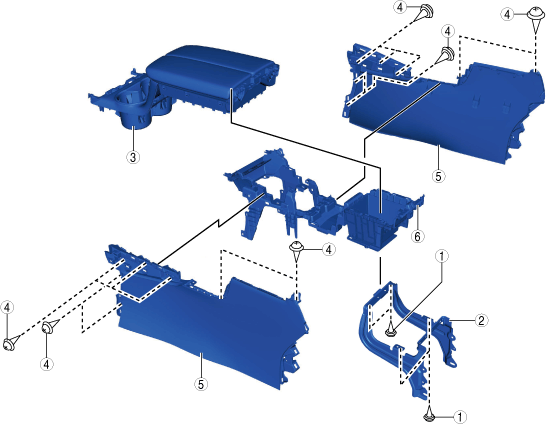

1. Disassemble in the order indicated in the table.
ac9uuw00007473
|
|
1
|
Screw A
|
|
2
|
Rear console bracket
|
|
3
|
Rear console component
|
|
4
|
Screw C
|
|
5
|
Side panel
|
|
6
|
Rear console box
|
2. Assemble in the reverse order of disassembly.
Rear Console Component

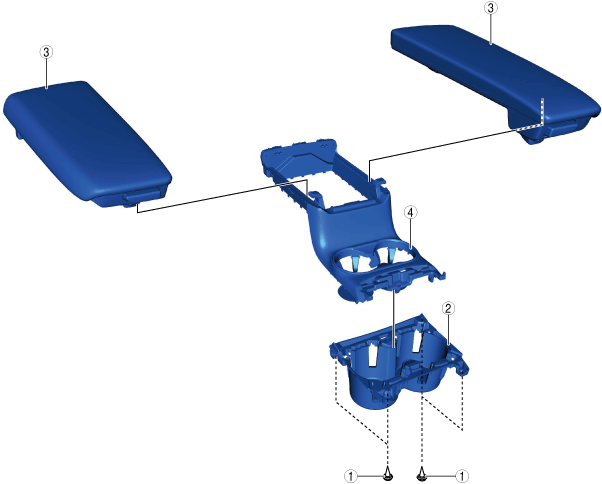

1. Disassemble in the order indicated in the table.
ac9wzw00004304
|
|
1
|
Screw
|
|
2
|
Cup holder
|
|
3
|
Rear console lid
|
|
4
|
Rear console
|
2. Assemble in the reverse order of disassembly.
