REAR DOOR TRIM REMOVAL/INSTALLATION

id091700603700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

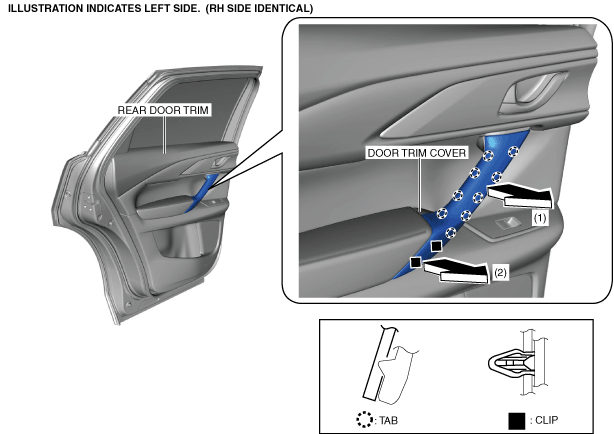

2.  Remove the door trim cover in the direction of the arrows in the order of (1), (2) while detaching the tabs, clips.

ac9uuw00005999

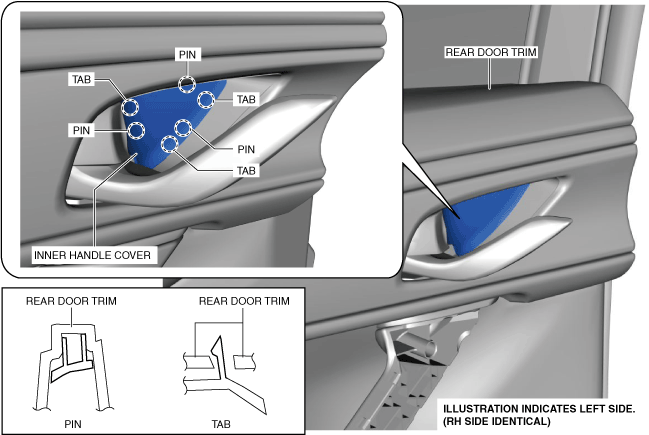

3.  Remove the inner handle cover while detaching the tabs, pins.

ac9wzw00003350

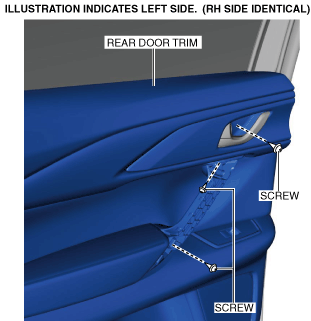

4.  Remove the screws.

ac9uuw00005577

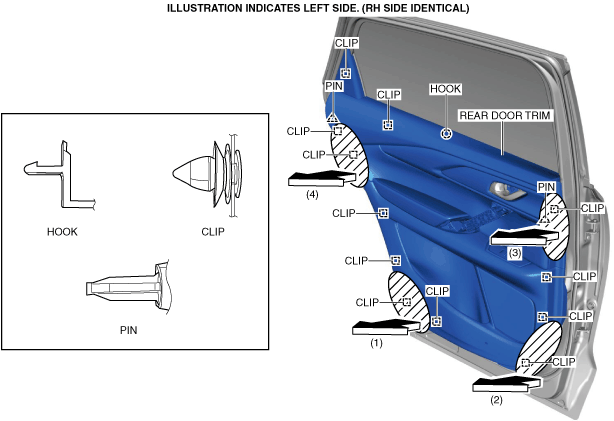

5.  Grasp the shaded areas shown in the figure, and pull the rear door trim in the direction of the arrows in the order of (1), (2), (3), (4) while detaching the clips, hook and pins.

ac9uuw00005578

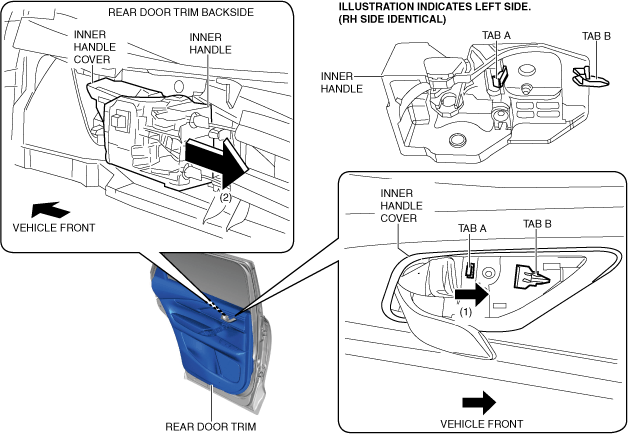

6.  Remove tab A in the direction of arrow (1) shown in the figure.

ac9wzw00005383

7.  Remove the inner handle in the direction of arrow (2) shown in the figure while detaching tab B.

8.  Disconnect the power window subswitch connector.

9.  Install in the reverse order of removal.
