FRONT SCUFF PLATE REMOVAL/INSTALLATION

id091700604000

Removal

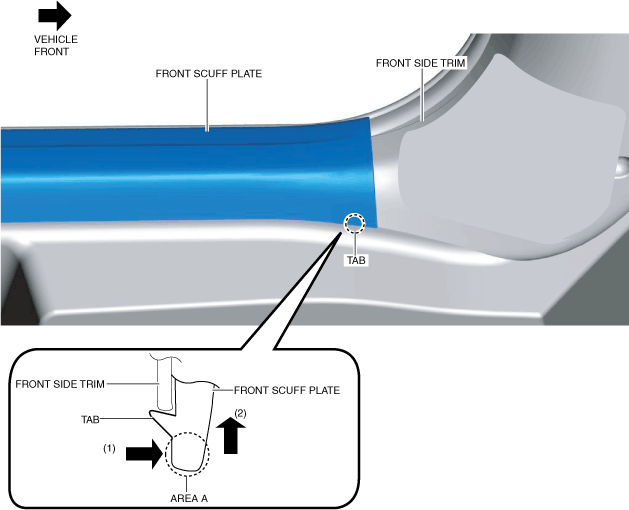

1.  Hold area A shown in the figure, open the front scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the front scuff plate from the front side trim.

ac9wzw00003351

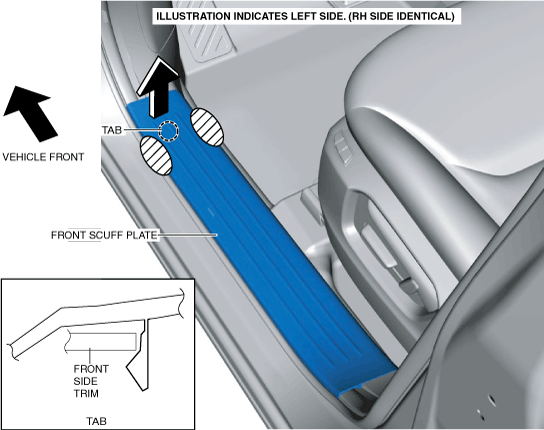

2.  Hold the shaded areas shown in the figure, move the front scuff plate in the direction of the arrow, and detach the tab of the front scuff plate from the front side trim.

ac9wzw00003591

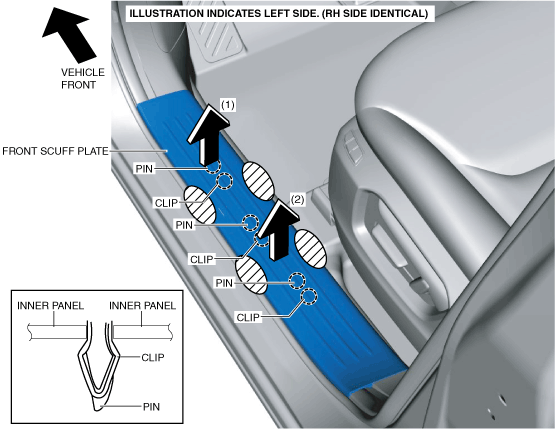

3.  Hold the shaded areas shown in the figure, move the front scuff plate in the direction of the arrows in the order of (1), (2) and remove it while detaching the clips from the inner panel, and pull out the pins.

ac9wzw00004791

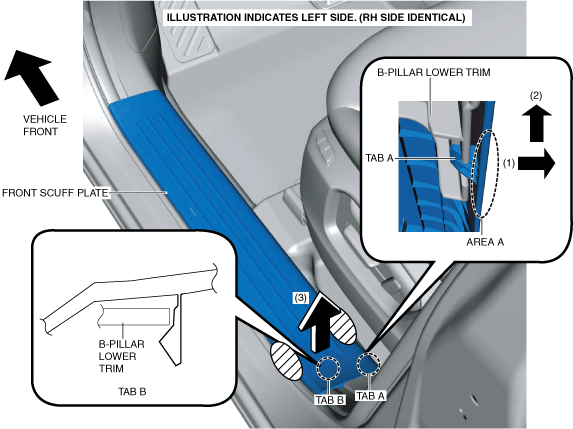

4.  Hold area A shown in the figure, open the front scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the front scuff plate from the B-pillar lower trim.

ac9wzw00003592

5.  Hold the shaded areas shown in the figure, move the front scuff plate in the direction of arrow (3), and detach tab B of the front scuff plate from the B-pillar lower trim.

Installation

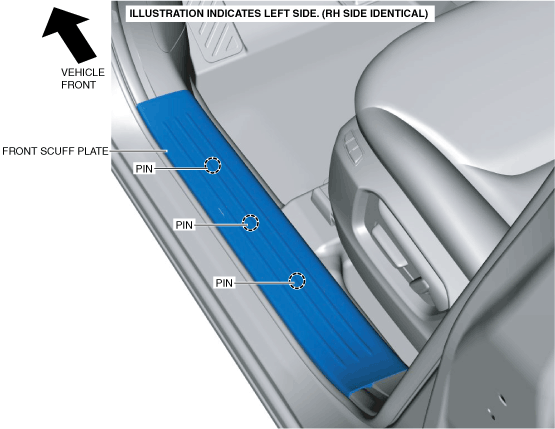

1.  Align the inner panel with the front scuff plate pins shown in the figure.

ac9uuw00005386

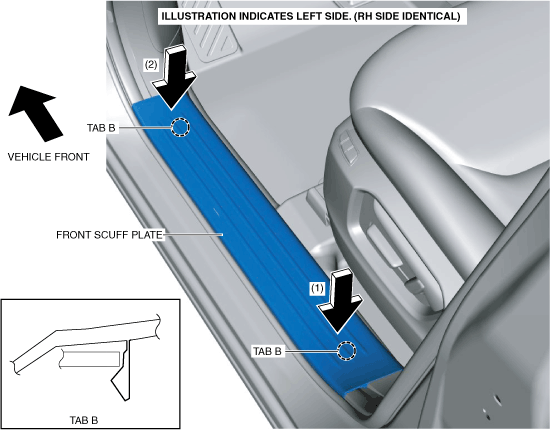

2.  Press the front scuff plate in the direction of arrow (1) shown in the figure and install tab B to the B-pillar lower trim.

ac9wzw00004283

3.  Press the front scuff plate in the direction of arrow (2) shown in the figure and install tab B to the front side trim.

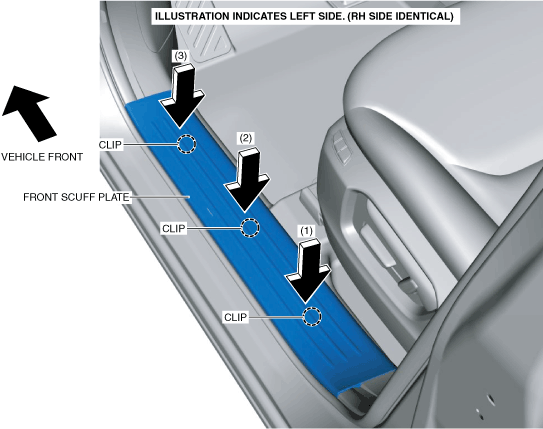

4.  Press the front scuff plate in the direction of arrow (1) shown in the figure and install the clip to the inner panel.

ac9wzw00004284

5.  Press the front scuff plate in the direction of arrow (2) shown in the figure and install the clip to the inner panel.

6.  Press the front scuff plate in the direction of arrow (3) shown in the figure and install the clip to the inner panel.

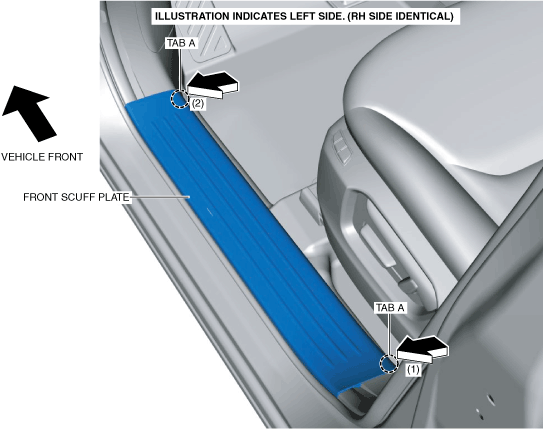

7.  Press the front scuff plate in the direction of arrow (1) shown in the figure and install tab A to the B-pillar lower trim.

ac9uuw00005389

8.  Press the front scuff plate in the direction of arrow (2) shown in the figure and install tab A to the front side trim.
