TRUNK BOARD REMOVAL/INSTALLATION

id091700604700

1.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

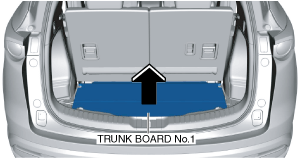

2.  Remove the trunk board No.1 in the direction of the arrow shown in the figure.

ac9wzw00004797

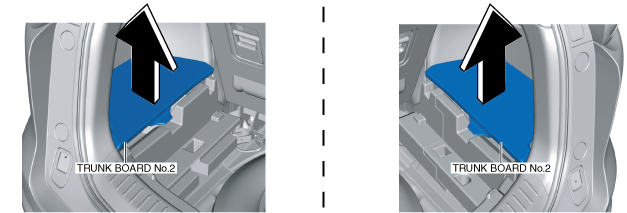

3.  Remove the trunk board No.2 in the direction of the arrow shown in the figure.

ac9wzw00004798

4.  Install in the reverse order of removal.
