LIFTGATE UPPER TRIM REMOVAL/INSTALLATION

id091700605100

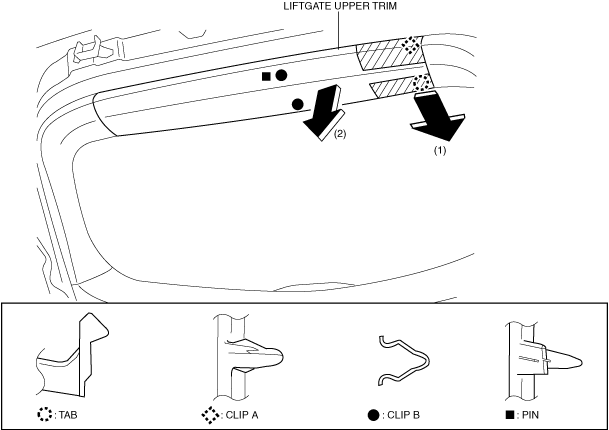

1.  Take the shaded areas shown in the figure, detach the tab while pulling the liftgate upper trim in the direction of arrow (1) shown in the figure, then detach clip A, clips B, tab, and pin while pulling in the direction of arrow (2).

ac9wzw00003601

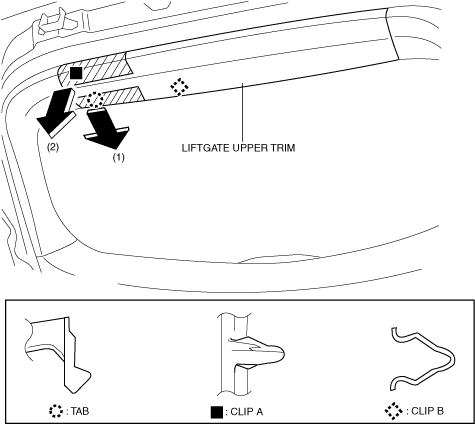

2.  Take the shaded areas shown in the figure, detach the tab while pulling the liftgate upper trim in the direction of arrow (1) shown in the figure, then detach clip A, clip B, and tab while pulling in the direction of arrow (2).

ac9wzw00003602

3.  Install in the reverse order of removal.
