LIFTGATE RECESS REMOVAL/INSTALLATION

id091700605400

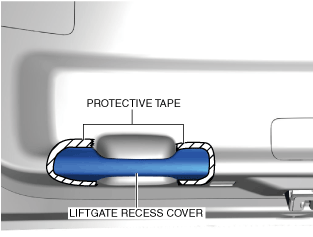

1.  Affix protective tape to the position shown in the figure.

ac9wzw00003616

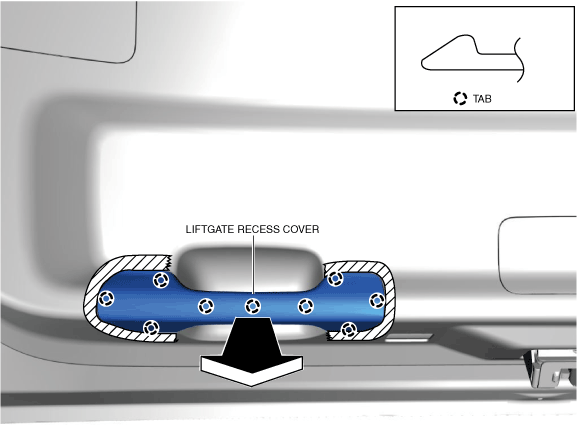

2.  Using the remover tool, remove the liftgate recess cover in the direction of arrow shown in the figure while detaching the tabs.

ac9uuw00007464

3.  Remove the screws.

ac9uuw00005650

4.  Remove the liftgate recess.

5.  Install in the reverse order of removal.
