ASSIST HANDLE REMOVAL/INSTALLATION

id091700605600

Removal

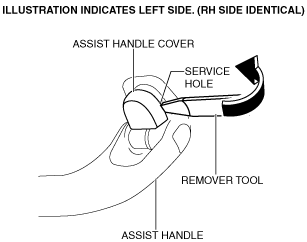

1.  Insert a remover tool into the service hole and remove the assist handle covers.

ac9wzw00004804

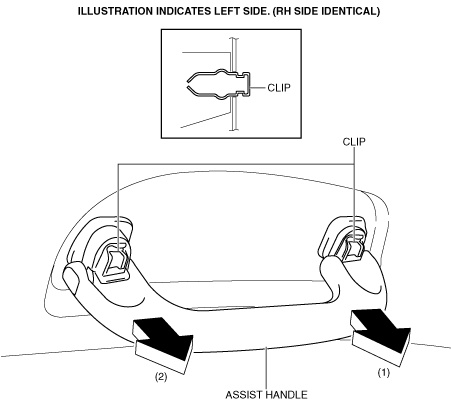

2.  Remove the assist handle in the direction of arrows (1) and (2), while detaching the clips.

ac9wzw00004805

Note

•  Remove the assist handle by shaking it up and down.

Installation

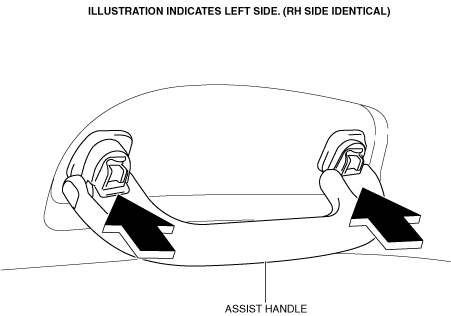

1.  Push the assist handle in the direction of the arrows shown in the figure.

ac9wzw00005387

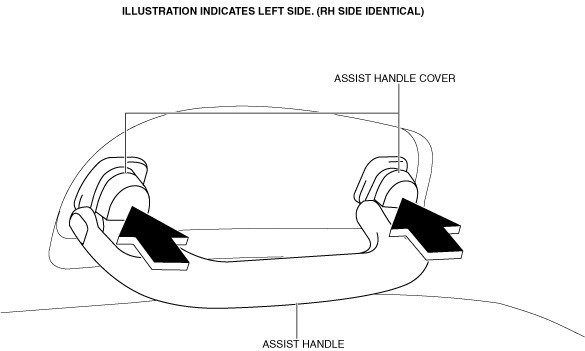

2.  Push the assist handle cover assembled to install the assist handle.

ac9wzw00004806
