HEADLIGHT AIMING

id091800800400

Note

•  If the following servicing is done, perform the headlight aiming adjustment.

?  Front combination light replacement

?  Suspension replacement and removal/installation, servicing requiring vehicle height to be changed

•  If servicing was done which changes the vehicle height, perform the headlight auto leveling system initial setting first to record the vehicle height under the unloaded condition to the auto leveling control module/adaptive LED headlights control module, then perform headlight aiming. (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)

•  When using an aiming tester to input the inclination angle (tilt angle) of the optical axis, input 1.0% for the inclination angle.

1.  Empty the vehicle except for the spare tire, jack and vehicle tools.

2.  Adjust the tire pressure to the specification. (See WHEEL AND TIRE SPECIFICATION.)

3.  Move the vehicle to level ground.

4.  Verify the headlight auto leveling system operation.

•  Sit on the rear seat to verify that the leveling operates.

?  If it operates, go to the next step.

?  If it does not operate, refer to the [THE HEADLIGHT AUTO LEVELING SYSTEM DOES NOT OPERATE IN RESPONSE TO VEHICLE POSTURE]. (See THE HEADLIGHT AUTO LEVELING SYSTEM DOES NOT OPERATE IN RESPONSE TO VEHICLE POSTURE [HEADLIGHT AUTO LEVELING SYSTEM].)

5.  Make an adjustment-use screen as shown in the figure using double-weight, white paper.

ac9wzw00003405

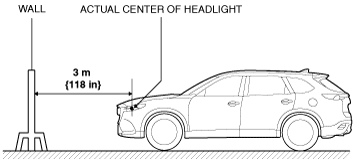

6.  Line up the vehicle with the wall so that the distance to the headlights is 3 m {118 in} from the wall.

ac9wzw00003406

7.  Measure the height at the center point of the headlight.

ac9wzw00003407

Note

•  Measure the height at the center point of the headlight in which the aiming is being adjusted because the vehicle height differs depending on vehicle conditions.

8.  Align the center of the headlight to be adjusted with the center of the headlight on the adjustment screen.

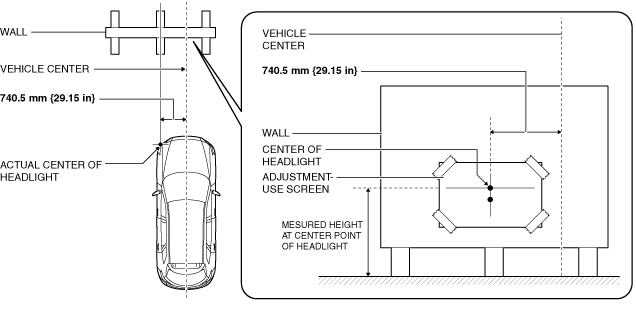

WITHOUT ADAPTIVE LED HEADLIGHTS

ac9wzw00003408

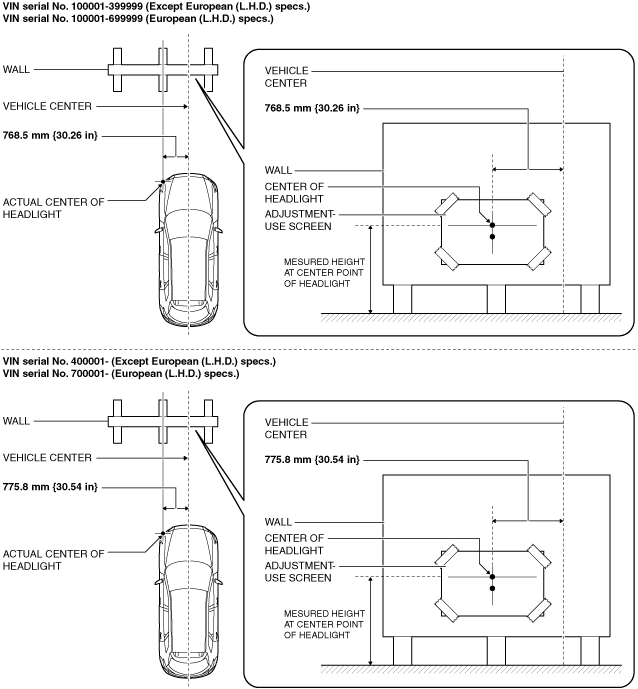

WITH ADAPTIVE LED HEADLIGHTS

ac9wzw00005776

9.  Set a partition in front of the headlight which is not being adjusted to block the light.

10.  Start the engine and charge the battery.

11.  Turn on the headlight low beams.

Note

•  If the headlight low beams are turned on, the light as shown in the figure is emitted to the adjustment screen.

ac9wzw00003409

12.  Cover the upper part of the headlight with a clean rag so that the brightness border line becomes transparent.

Note

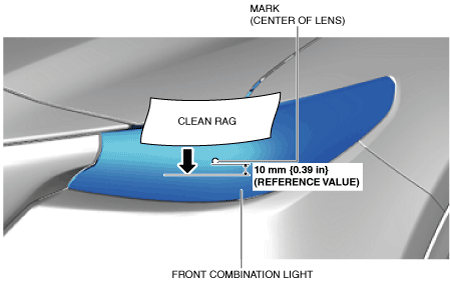

•  If the headlight is covered with a clean rag from the upper part of the headlight in the direction of the arrow shown in the figure, the yellow line disappears and the brightness border line becomes transparent.

ac9uuw00007132

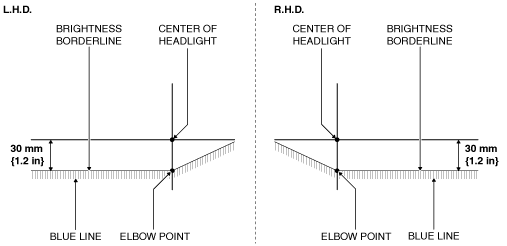

13.  Verify that the actual elbow point of the headlight is at the elbow point position indicated by the adjustment-use screen.

ac9wzw00003410

•  If the elbow point of the headlight is not at the position indicated on the adjustment screen, perform the headlight auto leveling system initial setting. (with headlight auto leveling system) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION.)

?  If it is not at the position indicated on the adjustment screen after performing the initial setting, perform the following adjustment.

•  Adjust the headlight by turning the aiming adjustment screw.

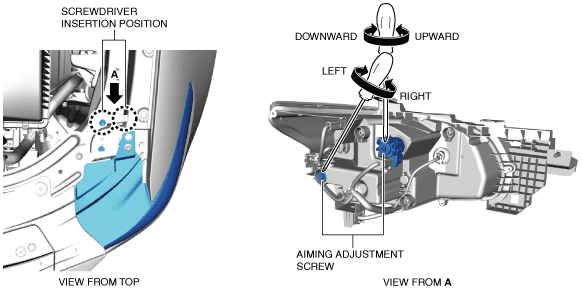

Without adaptive LED headlights

ac9wzw00003411

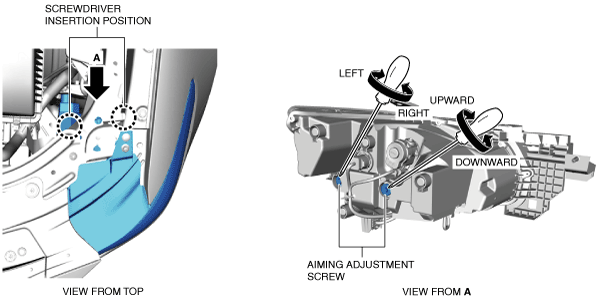

With adaptive LED headlights

ac9wzw00003412
