CENTER MAP LIGHT BULB REMOVAL/INSTALLATION

id091800815600

Type A

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

Caution

•  When inserting the remover tool in the gap between the center map light and the lens, the remover tool could interfere with the center map light and scratch or damage it. When removing the lens from the center map light, apply protective tape to the center map light.

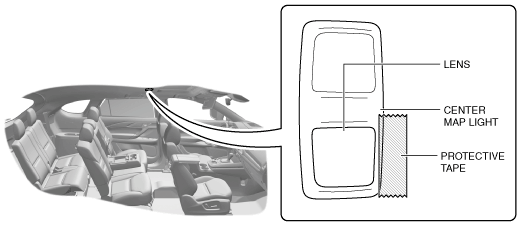

2.  To prevent scratches, apply protective tape to the position shown in the figure.

ac9uuw00007219

3.  Press the lens to assure a space for inserting the remover tool.

ac9wzw00003470

4.  Insert the remover tool into the gap between the lens and the center map light.

ac9wzw00003471

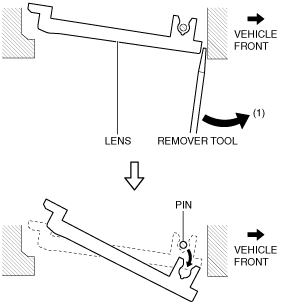

5.  Move the remover tool in the direction of arrow (1) shown in the figure, pull out the lens from the pin.

ac9wzw00003472

6.  Remove the lens.

ac9uuw00007220

7.  Move the center map light spring in the direction of the arrows (1) shown in the figure to detach the center map light spring from the center map light bulb/LED.

ac9uuw00007221

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).

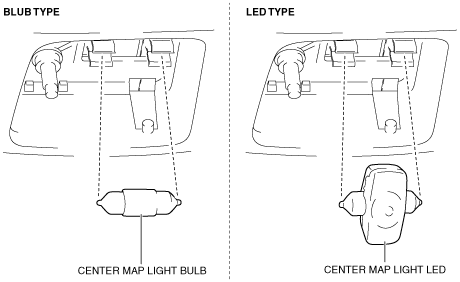

8.  Remove the center map light bulb/LED.

ac9wzw00003473

9.  Install in the reverse order of removal.

Type B

Note

•  The LED for the center map light cannot be replaced separately. If there is any malfunction in the LED, replace the center map light as a single unit. (See CENTER MAP LIGHT REMOVAL/INSTALLATION.)
