WINDSHIELD WASHER NOZZLE ADJUSTMENT

id091900476400

Caution

•  Do not insert objects into the injection nozzle when adjusting the nozzle. If the nozzle is adjusted by inserting a stick-like object into the nozzle, it could deform the injection nozzle and the washer fluid may not spray normally.

1.  Insert the remover tool into the adjustment holes of the windshield washer nozzle and adjust the area where washer fluid is sprayed as shown in the figure.

ac9uuw00007247

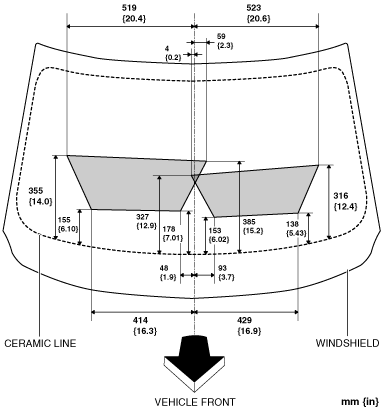

L.H.D.

ac9uuw00007248

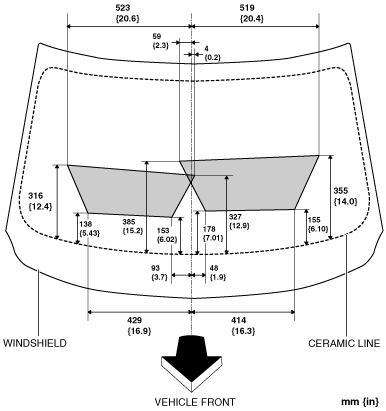

R.H.D.

ac9wzw00003483
