AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION

id092000031500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear console panel. (See REAR CONSOLE REMOVAL/INSTALLATION.)

3.  Remove the rear heat duct No.1. (See REAR HEAT DUCT No.1 REMOVAL/INSTALLATION.)

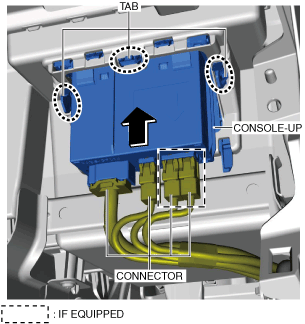

4.  Disconnect the connectors.

ac9wzw00005402

5.  Remove the console-up in the direction of the arrow while detaching the tabs.

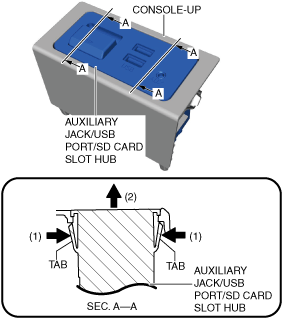

6.  While pressing the tabs of the auxiliary jack/USB port/SD card slot hub in the direction of arrows (1) shown in the figure, move the auxiliary jack/USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the auxiliary jack/USB port/SD card slot hub from the console-up.

ac9wzw00004887

7.  Remove the auxiliary jack/USB port/SD card slot hub.

8.  Install in the reverse order of removal.
