CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY
id092000031600

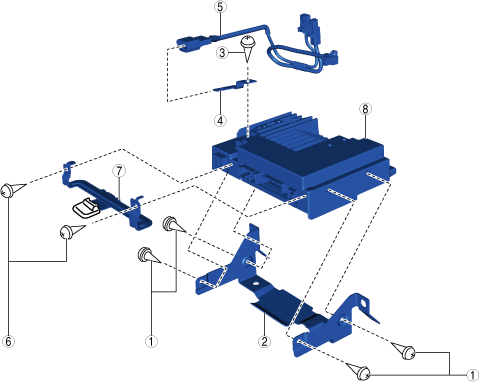

1. Disassemble in the order indicated in the table.
ac9wzw00004136
|
|
1
|
Screw A
|
|
2
|
Bracket A
|
|
3
|
Screw B
|
|
4
|
Bracket B
|
|
5
|
Short-cord
(See Short-cord Assembly Note.)
|
|
6
|
Screw C
|
|
7
|
Bracket C
|
|
8
|
Connectivity master unit (CMU)
|
2. Assemble in the reverse order of disassembly.
Short-cord Assembly Note
1. When assembling the short-cord, press it into the groove of the connectivity master unit (CMU).
