AUDIO AMPLIFIER REMOVAL/INSTALLATION

id092000801100

1.  Slide the front seat rearward (RH).

2.  Remove the bolts.

ac9wzw00003641

3.  Slide the front seat forward (RH).

4.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Remove the bolt.

ac9wzw00003642

6.  Disconnect the connectors.

ac9uuw00005657

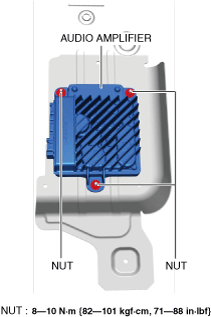

7.  Remove the nuts.

ac9wzw00003643

8.  Remove the audio amplifier.

9.  Install in the reverse order of removal.
