FRONT DOOR SPEAKER REMOVAL/INSTALLATION

id092000802200

Caution

•  If the procedure is performed while holding the front door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.

Without Bose^®

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

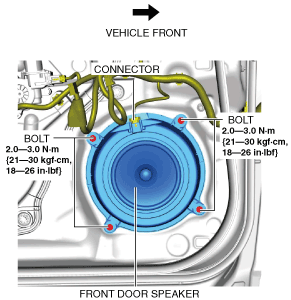

ac9uuw00006153

4.  Remove the bolts.

5.  Pull the front door speaker in the direction of the arrow shown in the figure and remove it.

ac9uuw00007744

6.  Install in the reverse order of removal. (See Front Door Speaker Installation Note.)

With Bose^®

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

ac9uuw00006154

4.  Remove the bolts.

5.  Pull the front door speaker in the direction of the arrow shown in the figure and remove it.

ac9uuw00007745

6.  Remove the screws.

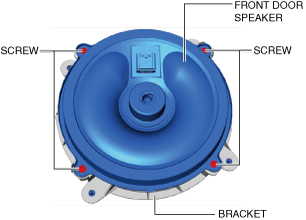

ac9wzw00004979

7.  Remove the front door speaker from the bracket.

8.  Install in the reverse order of removal. (See Front Door Speaker Installation Note.)

Front Door Speaker Installation Note

1.  Install the front door speaker while aligning the pins to the positions shown in the figure.

Without Bose^®

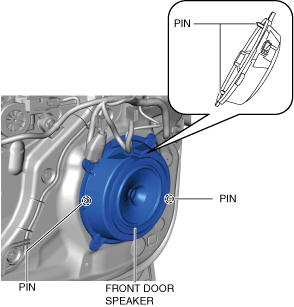

ac9uuw00007746

With Bose^®

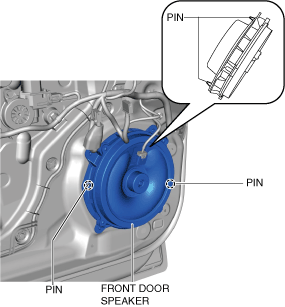

ac9uuw00007747
