RELAY AND FUSE BLOCK DISASSEMBLY/ASSEMBLY

id092100900000

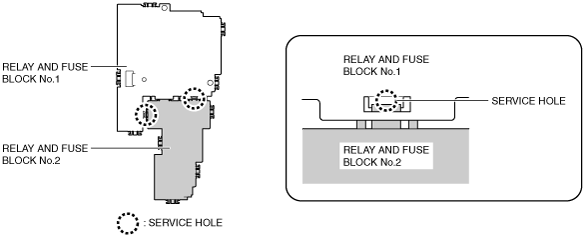

1.  Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

ac9uuw00005978

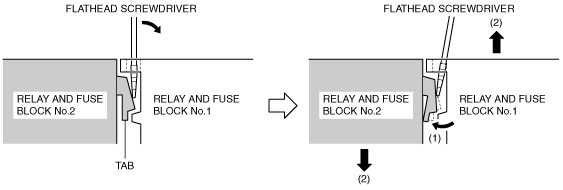

2.  While pressing the tab of relay and fuse block No.2 in the direction of the arrow (1) shown in the figure, pull relay and fuse block No.1 and relay and fuse block No.2 in the direction of the arrows (2) to detach the tab of relay and fuse block No.2 from relay and fuse block No.1.

ac9uuw00005979

3.  Detach all tabs of relay and fuse block No.2 from relay and fuse block No.1, and remove relay and fuse block No.1 from relay and fuse block No.2.

4.  Assemble in the reverse order of disassembly.
