DETERMINING OPEN CIRCUIT LOCATION (HS-CAN) [L.H.D.]

id100225000400

Caution

• Perform the following malfunction diagnosis only when it is diagnosed with a open circuit by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D.].)

• If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.

• When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1. Verify the CAN system-related module DTCs and the failed module on the M-MDS screen.

2. Apply the communication error DTC and the failed module to DTC output pattern and malfunctioning location, and select the possible cause for the diagnostic result and the reference for the inspection item. (See DTC Output Pattern And Malfunctioning Location.)

Note

• The open circuit location can be determined by the DTC indicated in the DTC output pattern and malfunctioning location chart. DTCs not listed in the chart are not used for the determination of the open circuit location. (See DTC Output Pattern And Malfunctioning Location.)

3. Inspect the possible cause and inspection item of the applicable malfunctioning part.

4. After repairs, return to CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW, and verify that the repairs have been completed. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D.].)

DTC Output Pattern And Malfunctioning Location

Cross (×): Communication error-related DTC and failed module

M-MDS display	DTC	DTC output pattern and malfunctioning location
DTC output module	DTC	DTC output pattern and malfunctioning location
PCM (PCM)	U0101:00					×
	U0104:00			×
	U0121:00		×
	U0131:00																				×			×	×
	U0140:00						×
	U0151:00																				×			×			×
	U0155:00																				×			×							×
	U0214:00																				×			×		×
	U0235:00																				×	×
	U023A:00																				×		×
ABS (DSC HU/CM)	U0100:00	×
	U0101:00					×
	U0104:00			×
	U0114:00															×
	U0128:00																	×
	U0131:00																				×			×	×
	U0140:00						×
	U0151:00																				×			×			×
	U0155:00																				×			×							×
	U0235:00																				×	×
	U023A:00																				×		×
SBS/MRCC^*1 (Radar unit)	U0100:00	×
	U0101:00					×
	U0121:00		×
	U0131:00																				×			×	×
	U0140:00						×
	U0151:00																				×			×			×
	U0155:00																				×			×							×
	U0214:00																				×			×		×
	U0235:68																				×	×
	U023A:00																				×		×
TCM (TCM)	U0100:00	×			×
	U0121:00		×		×
	U0131:00																				×			×	×
	U0155:00																				×			×							×
	U0214:00																				×			×		×
F_BCM (Front body control module (FBCM))	U0100:00	×			×
	U0101:00					×
	U0121:00		×		×
	U0151:00																				×			×			×
	U0155:00																				×			×							×
	U0182:00								×
	U0214:00																				×			×		×
	U023A:00																				×		×
AFS/ALM^*2 (Adaptive LED headlights control module)	U0100:00	×			×			×
	U0121:00		×		×			×
	U0131:00																				×			×	×
	U0140:00						×	×
	U0155:00																				×			×							×
	U0214:00																				×			×		×
	U023A:00
AFS/ALM^*3 (Auto leveling control module)	U0100:00	×			×			×
	U0140:00						×	×
	U0155:00																				×			×							×
DSM^*4 (Position memory control module)	U0100:00	×			×			×		×
	U0101:00					×		×		×
	U0151:00																				×			×			×
	U0155:00																				×			×							×
	U0214:00																				×			×		×
PLG^*5 (Power liftgate (PLG) control module)	U0100:00	×			×			×		×		×
	U0101:00					×		×		×		×
	U0214:00																				×			×		×
4×4^*7 (4WD control module)	U0100:00	×			×			×		×		×		×
	U0101:00					×		×		×		×		×
	U0121:00		×		×			×		×		×		×
EPB (Electric parking brake control module)	U0100:00	×			×			×		×		×		×			×
	U0101:00					×		×		×		×		×			×
	U0121:00		×		×			×		×		×		×			×
	U0151:00																				×			×			×
	U0155:00																				×			×							×
RSML^*12 (Rear one-touch walk-in control module)	U0100:00	×			×			×		×		×		×			×
	U0155:00																			×	×			×							×
	U0214:00																			×	×			×		×
SCBS^8 (Laser sensor)	U0100:00	×			×			×		×		×		×			×			×
	U0121:00		×		×			×		×		×		×			×			×
	U0131:00																							×	×
	U0155:00																							×							×
FSC^*9 (Forward sensing camera (FSC))	U0100:00	×			×			×		×		×		×			×			×
	U0104:00			×	×			×		×		×		×			×			×
	U0121:00		×		×			×		×		×		×			×			×
	U0131:00																							×	×
	U0140:00						×	×		×		×		×			×			×
	U0151:00																							×			×
	U0155:00																							×							×
	U0156:00																							×					×
	U0182:00								×	×		×		×			×			×
	U0214:00																							×		×
EPS (EPS control module	U0100:00	×			×			×		×		×		×			×			×
	U0121:00		×		×			×		×		×		×			×			×
	U0126:00																										×
	U0155:00																														×
	U0214:00																									×
	U023A:00																						×
RCM (SAS control module)	U0155:00																														×
SSU (Start stop unit)	U0100:00	×			×			×		×		×		×			×			×
	U0101:00					×		×		×		×		×			×			×
	U0121:00		×		×			×		×		×		×			×			×
	U0121:87		×		×			×		×		×		×			×			×
	U0131:00																								×
	U0140:00						×	×		×		×		×			×			×
	U0146:00																														×
	U0151:00																										×
	U0155:00																														×
CMU (Connectivity master unit (CMU))	U0100:00	×			×			×		×		×		×			×			×
	U0101:00					×		×		×		×		×			×			×
	U0121:00		×		×			×		×		×		×			×			×
	U0131:00																								×
	U0140:00						×	×		×		×		×			×			×
	U0151:00																										×
	U0155:00																														×
	U0182:00								×	×		×		×			×			×
	U0214:00																									×
	U0235:00																					×
	U023A:00																						×
DCM (MAZDA ERA-GLONASS control module)	U0100:00	×			×			×		×		×		×			×			×
	U0121:00		×		×			×		×		×		×			×			×
	U0151:00																										×
	U0155:00																														×
IC (Instrument cluster)	U0100:00	×			×			×		×		×		×			×			×
	U0101:00					×		×		×		×		×			×			×
	U0104:00			×	×			×		×		×		×			×			×
	U0114:00															×	×			×
	U0121:00		×		×			×		×		×		×			×			×
	U0128:00																	×		×
	U0131:00																								×
	U0140:00						×	×		×		×		×			×			×
	U0151:00																										×
	U0156:00																												×
	U0182:00								×	×		×		×			×			×
	U0214:00																									×
	U0235:00																					×
	U023A:00																						×
M-MDS display module		[Fail] display pattern
PCM		×			×			×		×		×		×			×			×
ABS			×		×			×		×		×		×			×			×
SBS/MRCC^*1				×	×			×		×		×		×			×			×
TCM						×		×		×		×		×			×			×
F_BCM							×	×		×		×		×			×			×
AFS/ALM^2^3									×	×		×		×			×			×
DSM^*4											×	×		×			×			×
PLG^*5													×	×			×			×
AM^*6															×		×			×
4×4^*7																×	×			×
EPB																		×		×
RSML^*12																			×
SCBS^*8																					×	×
FSC^*9																					×		×
EPS																					×			×	×
SSU																					×			×		×
RCM																					×			×			×
HUD^*10																					×			×				×
CMU																					×			×					×
DCM^*11																					×			×						×
IC																					×			×							×
Diagnostic result
Possible cause and inspection item		A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V	W	X	Y	Z	AA	AB	AC	AD

*1 :With Mazda Radar Cruise Control (MRCC) system

*2 :With adaptive LED headlights system

*3 :With auto leveling system

*4 :With position memory system

*5 :With power liftgate (PLG) system

*6 :With Bose^® type audio

*7 :4WD

*8 :With laser sensor

*9 :With forward sensing camera (FSC)

*10 :With active driving display

*11 :With MAZDA ERA-GLONASS

*12 :With walk-in switch

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• PCM power supply voltage or body ground malfunction

• Open circuit in wiring harness between PCM and connector C-42

• Connector C-42 malfunction

• PCM malfunction

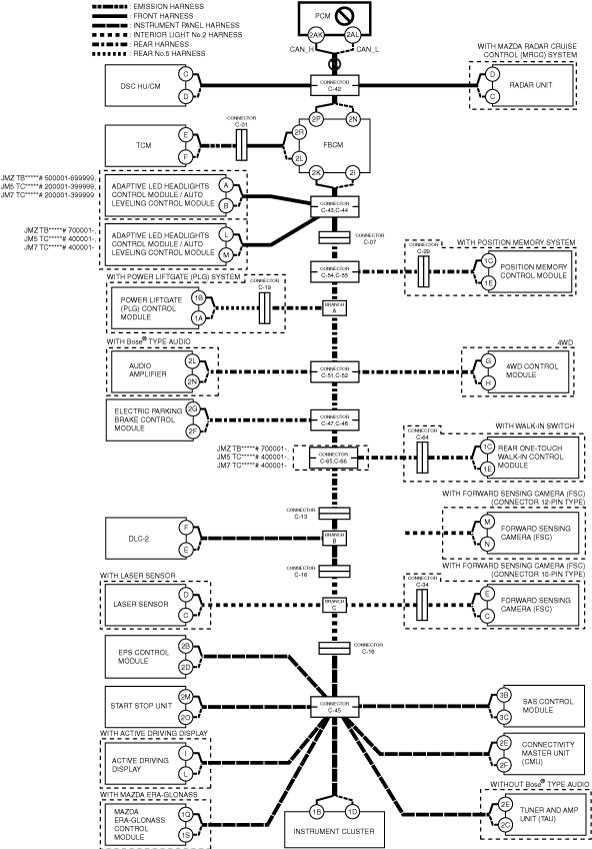

System wiring diagram

ac9wzw00005098

Inspection item

• PCM power supply voltage-related wiring harness and fuse

• PCM body ground related wiring harness

• PCM connector

• Connector C-42

• Wiring harness between PCM terminal 2AK and connector C-42

• Wiring harness between PCM terminal 2AL and connector C-42

• PCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• DSC HU/CM power supply voltage or body ground malfunction

• Open circuit in wiring harness between DSC HU/CM and connector C-42

• Connector C-42 malfunction

• DSC HU/CM malfunction

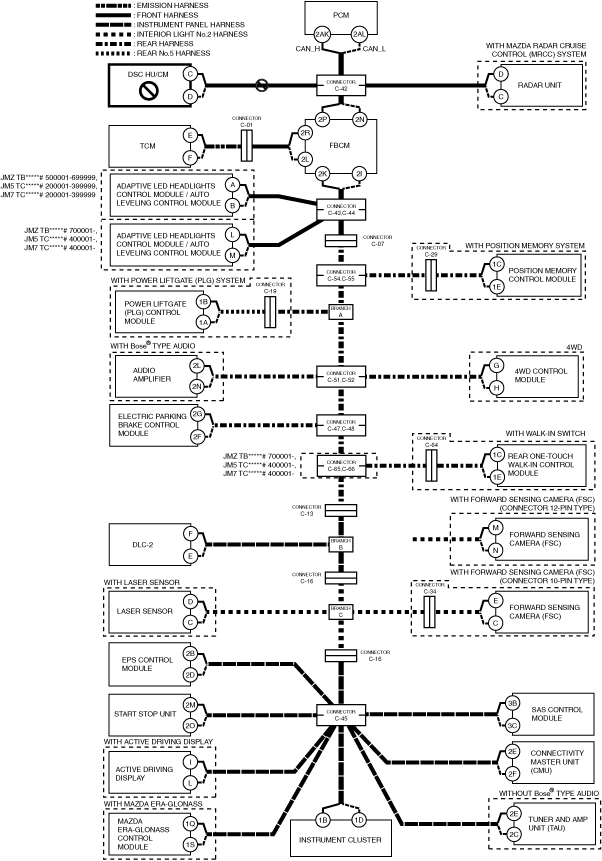

System wiring diagram

ac9wzw00005099

Inspection item

• DSC HU/CM power supply voltage-related wiring harness and fuse

• DSC HU/CM body ground related wiring harness

• DSC HU/CM connector

• Connector C-42

• Wiring harness between DSC HU/CM terminal C and connector C-42

• Wiring harness between DSC HU/CM terminal D and connector C-42

• DSC HU/CM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Radar unit power supply voltage or body ground malfunction

• Open circuit in wiring harness between radar unit and connector C-42

• Connector C-42 malfunction

• Radar unit malfunction

System wiring diagram

ac9wzw00005100

Inspection item

• Radar unit power supply voltage-related wiring harness and fuse

• Radar unit body ground related wiring harness

• Radar unit connector

• Connector C-42

• Wiring harness between radar unit terminal D and connector C-42

• Wiring harness between radar unit terminal C and connector C-42

• Radar unit

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between front body control module (FBCM) and connector C-42

• Connector C-42 malfunction

• CAN circuit in front body control module (FBCM) malfunction

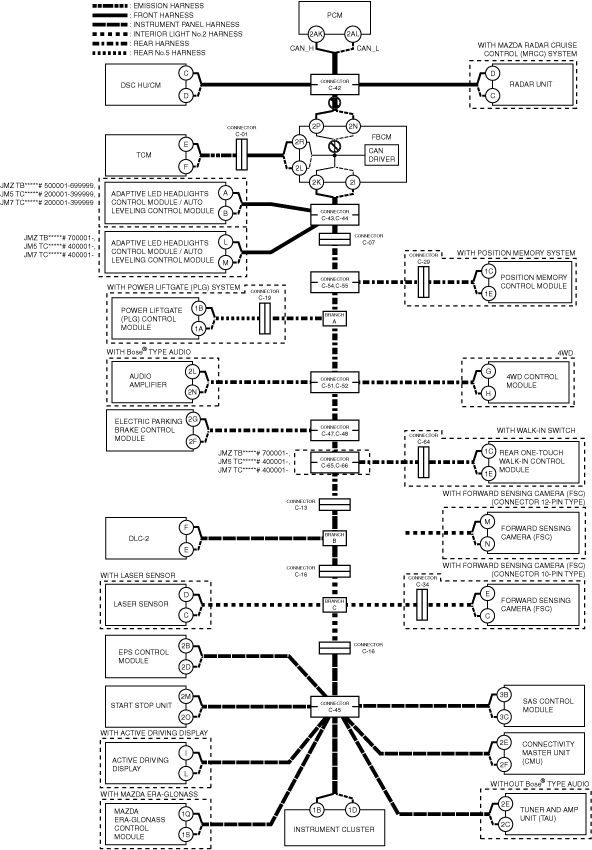

System wiring diagram

ac9wzw00005101

Inspection item

• Front body control module (FBCM) connector

• Connector C-42

• Wiring harness between front body control module (FBCM) terminal 2P and connector C-42

• Wiring harness between front body control module (FBCM) terminal 2N and connector C-42

• Front body control module (FBCM)

? Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

? Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• TCM power supply voltage or body ground malfunction

• Open circuit in wiring harness between TCM and connector C-01

• Open circuit in wiring harness between connector C-01 and front body control module (FBCM)

• Connector C-01 malfunction

• TCM malfunction

• CAN circuit in front body control module (FBCM) malfunction

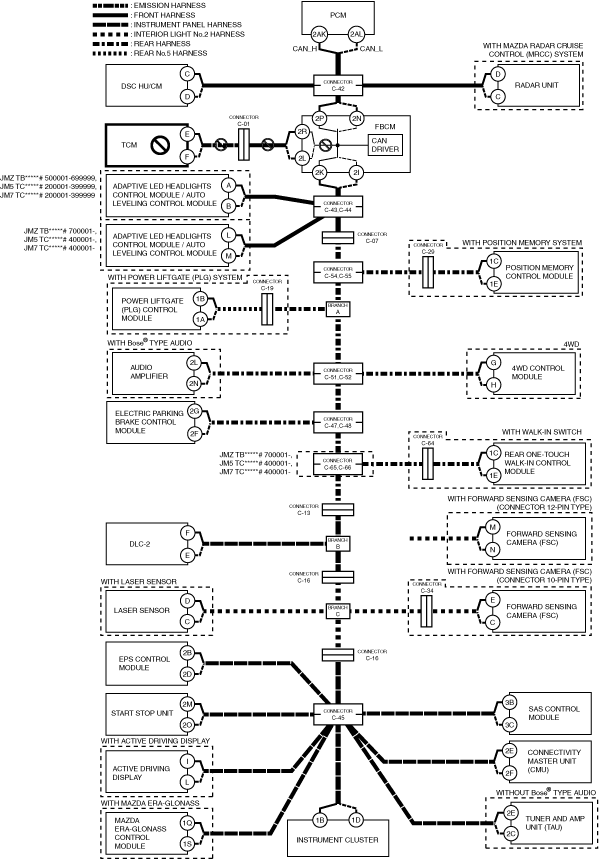

System wiring diagram

ac9wzw00005102

Inspection item

• TCM power supply voltage-related wiring harness and fuse

• TCM body ground related wiring harness

• TCM connector

• Connector C-01

• Front body control module (FBCM) connector

• Wiring harness between TCM terminal E and connector C-01

• Wiring harness between TCM terminal F and connector C-01

• Wiring harness between front body control module (FBCM) terminal 2R and connector C-01

• Wiring harness between front body control module (FBCM) terminal 2L and connector C-01

• TCM

• Front body control module (FBCM)

? Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2R

? Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2L

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Front body control module (FBCM) power supply voltage or body ground malfunction

• Front body control module (FBCM) malfunction

System wiring diagram

ac9wzw00005103

Inspection item

• Front body control module (FBCM) power supply voltage-related wiring harness and fuse

• Front body control module (FBCM) body ground related wiring harness

• Front body control module (FBCM)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between front body control module (FBCM) and connectors C-43,C-44

• Connectors C-43,C-44 malfunction

• CAN circuit in front body control module (FBCM) malfunction

System wiring diagram

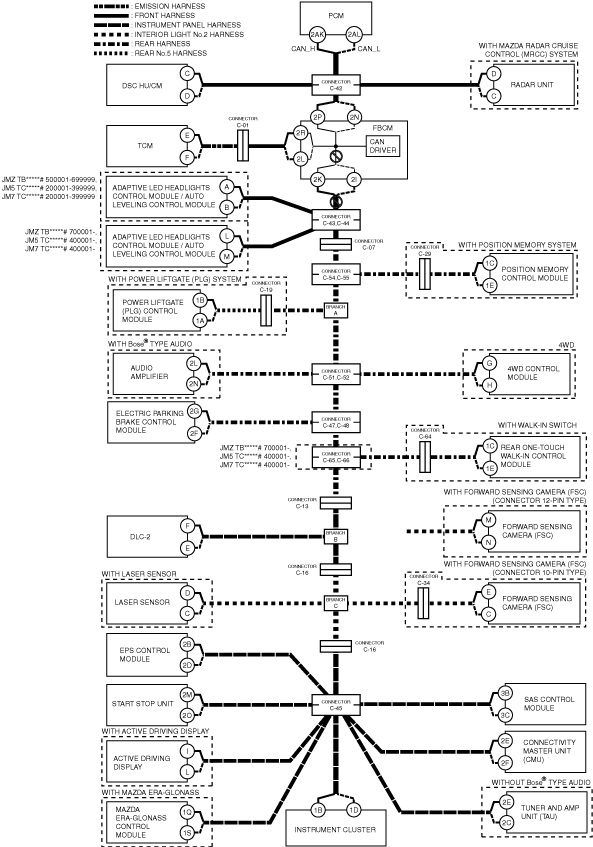

ac9wzw00005104

Inspection item

• Front body control module (FBCM) connector

• Connectors C-43,C-44

• Wiring harness between front body control module (FBCM) terminal 2K and connector C-43

• Wiring harness between front body control module (FBCM) terminal 2I and connector C-44

• Front body control module (FBCM)

? Between front body control module (FBCM) terminal 2P and front body control module (FBCM) terminal 2K

? Between front body control module (FBCM) terminal 2N and front body control module (FBCM) terminal 2I

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Adaptive LED headlights control module / auto leveling control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between adaptive LED headlights control module / auto leveling control module and connectors C-43,C-44

• Connectors C-43,C-44 malfunction

• Adaptive LED headlights control module / auto leveling control module malfunction

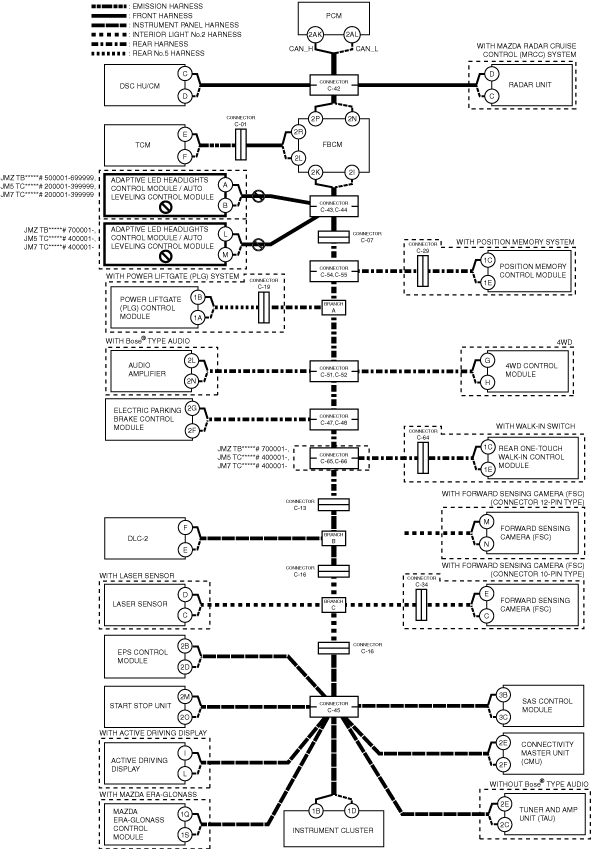

System wiring diagram

ac9wzw00005105

Inspection item

• Adaptive LED headlights control module / auto leveling control module power supply voltage-related wiring harness and fuse

• Adaptive LED headlights control module / auto leveling control module body ground related wiring harness

• Adaptive LED headlights control module / auto leveling control module connector

• Connectors C-43,C-44

• Wiring harness between adaptive LED headlights control module / auto leveling control module terminal A and connector C-43(JMZ TB*****# 500001-699999,JM5 TC*****# 200001-399999,JM7 TC*****# 200001-399999)

• Wiring harness between adaptive LED headlights control module / auto leveling control module terminal B and connector C-44(JMZ TB*****# 500001-699999,JM5 TC*****# 200001-399999,JM7 TC*****# 200001-399999)

• Wiring harness between adaptive LED headlights control module / auto leveling control module terminal L and connector C-43 (JMZ TB*****# 700001-,JM5 TC*****# 400001-, JM7 TC*****# 400001-)

• Wiring harness between adaptive LED headlights control module / auto leveling control module terminal M and connector C-44 (JMZ TB*****# 700001-,JM5 TC*****# 400001-, JM7 TC*****# 400001-)

• Adaptive LED headlights control module / auto leveling control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-43, C-44 and connector C-07

• Open circuit in wiring harness between connector C-07 and connectors C-54, C-55

• Connectors C-43, C-44 malfunction

• Connector C-07 malfunction

• Connectors C-54, C-55 malfunction

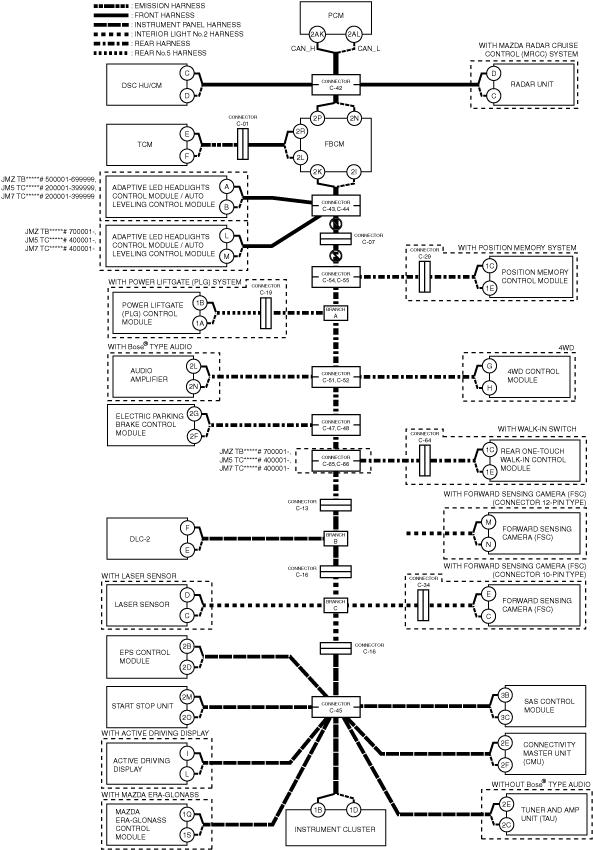

System wiring diagram

ac9wzw00005106

Inspection item

• Connectors C-43, C-44

• Connector C-07

• Connectors C-54, C-55

• Wiring harness between connectors C-43, C-44 and connector C-07

• Wiring harness between connector C-07 and connectors C-54, C-55

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Position memory control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between position memory control module and connector C-29

• Open circuit in wiring harness between connector C-29 and connectors C-54, C-55

• Connector C-29 malfunction

• Connectors C-54, C-55 malfunction

• Position memory control module malfunction

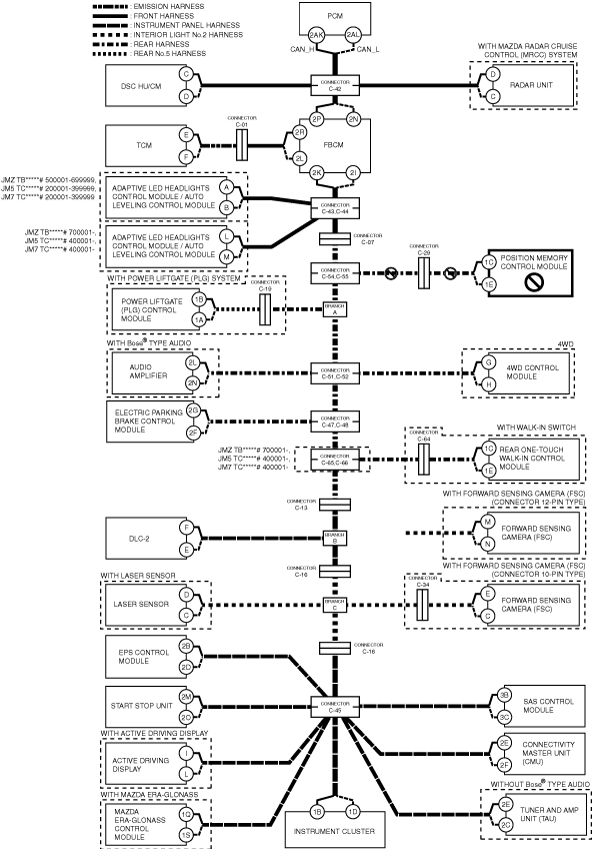

System wiring diagram

ac9wzw00005107

Inspection item

• Position memory control module power supply voltage-related wiring harness and fuse

• Position memory control module body ground related wiring harness

• Position memory control module connector

• Connector C-29

• Connectors C-54, C-55

• Wiring harness between position memory control module terminal 1C and connector C-29

• Wiring harness between position memory control module terminal 1E and connector C-29

• Wiring harness between connector C-29 and connectors C-54, C-55

• Position memory control module

With power liftgate (PLG) system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-54, C-55 and branch A

• Connectors C-54, C-55 malfunction

System wiring diagram

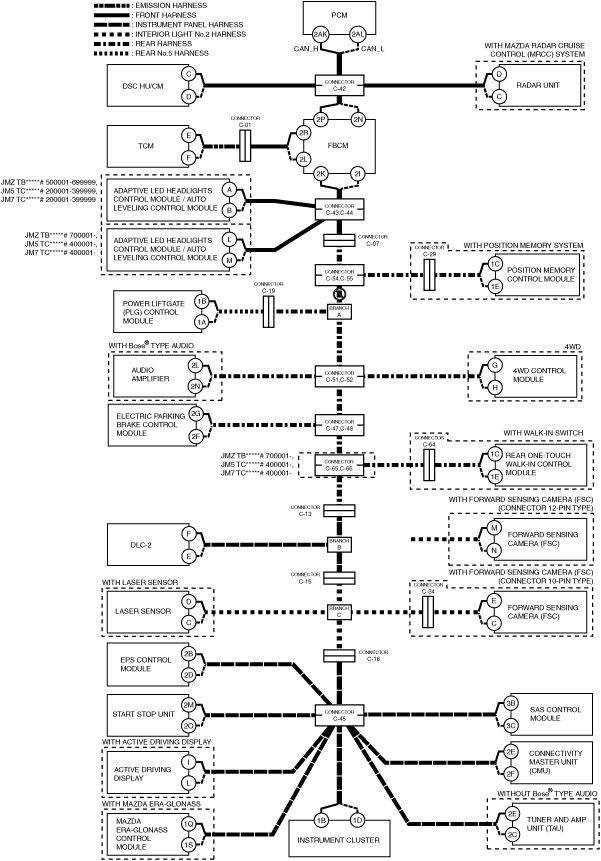

ac9wzw00005108

Inspection item

• Connectors C-54, C-55

• Wiring harness between connectors C-54, C-55 and branch A

Without power liftgate (PLG) system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-54, C-55 and connectors C-51,C-52

• Connectors C-54, C-55 malfunction

• Connectors C-51, C-52 malfunction

System wiring diagram

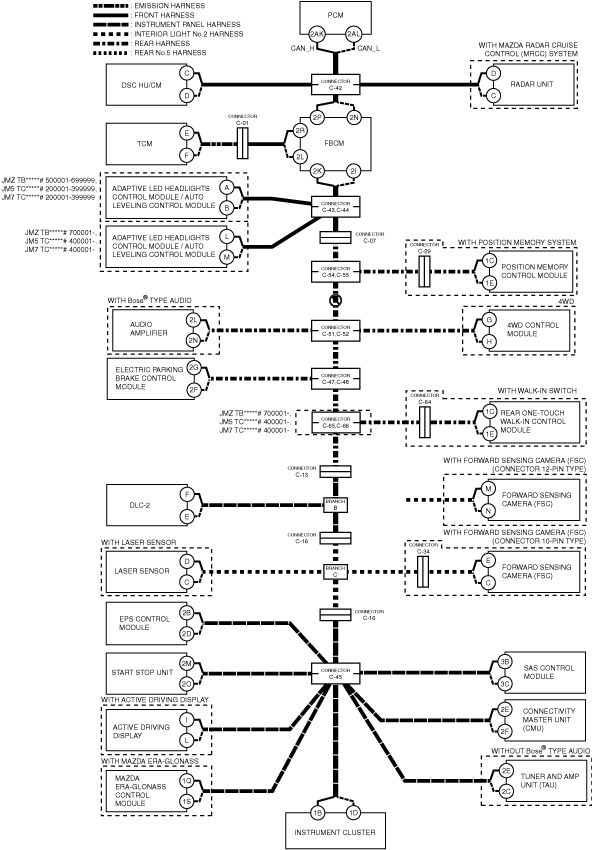

ac9wzw00005109

Inspection item

• Wiring harness between connectors C-54, C-55 and connectors C-51, C-52

• Connectors C-54, C-55

• Connectors C-51, C-52

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Power liftgate (PLG) control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between power liftgate (PLG) control module and connector C-19

• Open circuit in wiring harness between connector C-19 and branch A

• Connector C-19 malfunction

• Power liftgate (PLG) control module malfunction

System wiring diagram

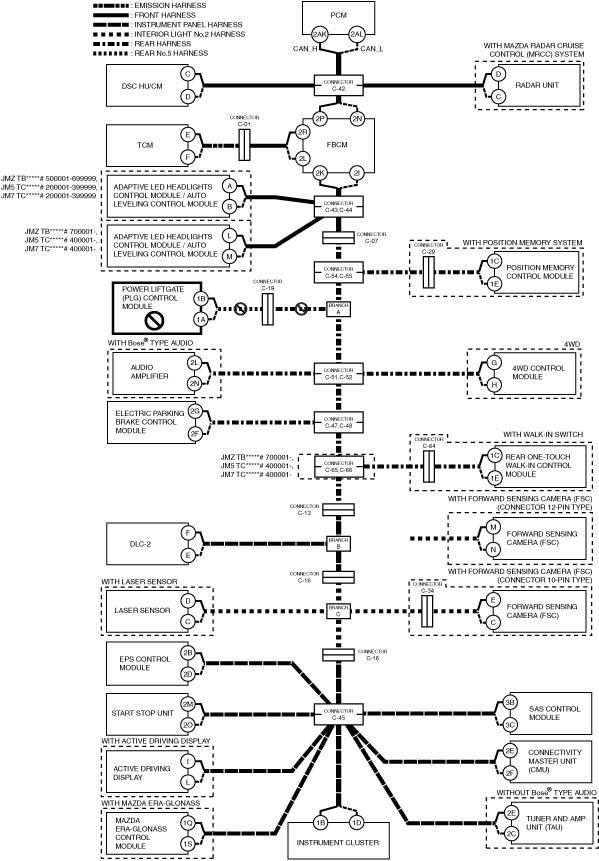

ac9wzw00005110

Inspection item

• Power liftgate (PLG) control module power supply voltage-related wiring harness and fuse

• Power liftgate (PLG) control module body ground related wiring harness

• Power liftgate (PLG) control module connector

• Connector C-19

• Wiring harness between power liftgate (PLG) control module terminal 1B and connector C-19

• Wiring harness between power liftgate (PLG) control module terminal 1A and connector C-19

• Wiring harness between connector C-19 and branch A

• Power liftgate (PLG) control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch A and connectors C-51,C-52

• Connectors C-51, C-52 malfunction

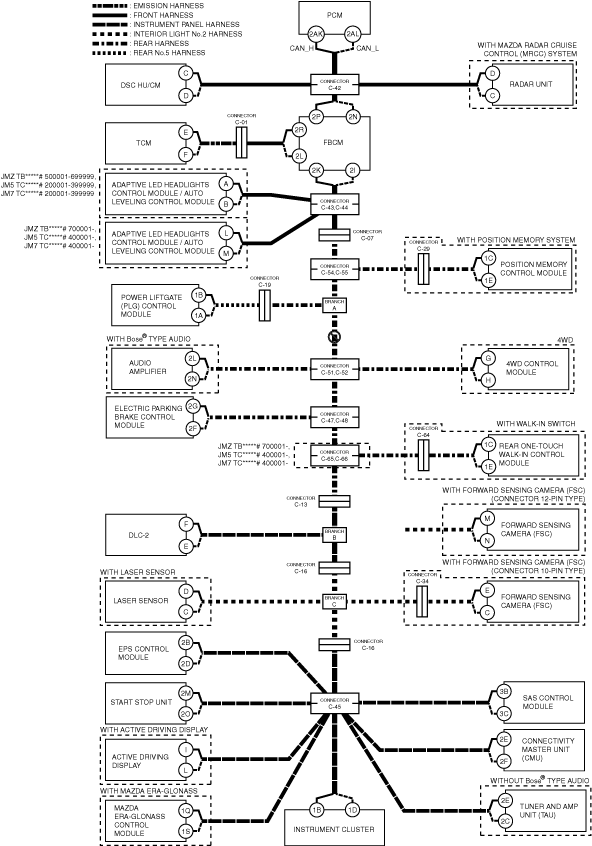

System wiring diagram

ac9wzw00005111

Inspection item

• Wiring harness between branch A and connectors C-51,C-52

• Connectors C-51, C-52

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Audio amplifier power supply voltage or body ground malfunction

• Open circuit in wiring harness between audio amplifier and connectors C-51, C-52

• Connectors C-51, C-52 malfunction

• Audio amplifier malfunction

System wiring diagram

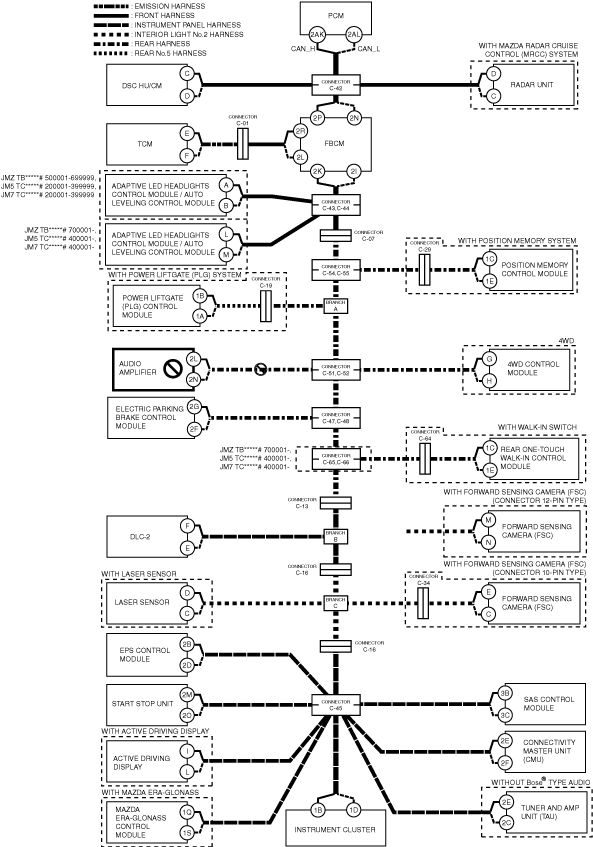

ac9wzw00005112

Inspection item

• Audio amplifier power supply voltage-related wiring harness and fuse

• Audio amplifier body ground related wiring harness

• Audio amplifier connector

• Connectors C-51, C-52

• Wiring harness between audio amplifier terminal 2L and connector C-51

• Wiring harness between audio amplifier terminal 2N and connector C-52

• Audio amplifier

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• 4WD control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between 4WD control module and connectors C-51, C-52

• Connectors C-51, C-52 malfunction

• 4WD control module malfunction

System wiring diagram

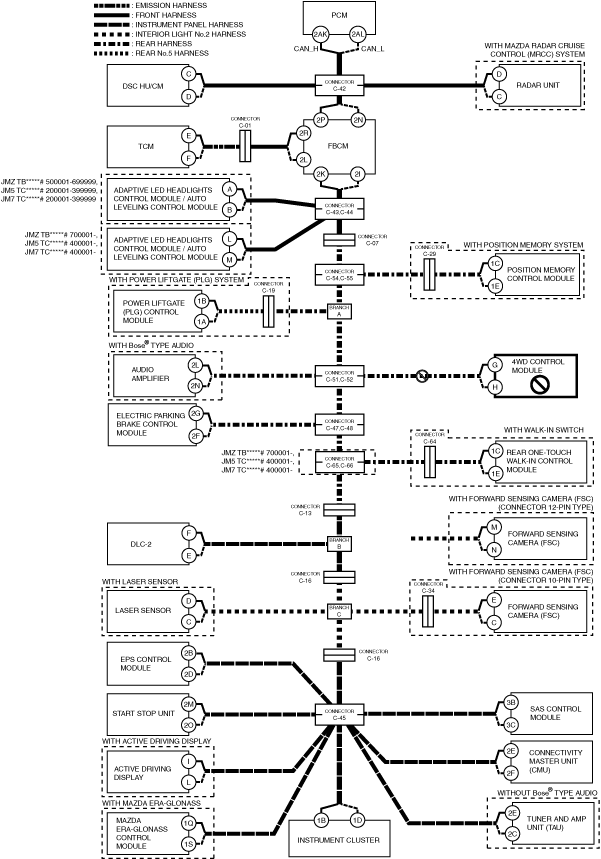

ac9wzw00005113

Inspection item

• 4WD control module power supply voltage-related wiring harness and fuse

• 4WD control module body ground related wiring harness

• 4WD control module connector

• Connectors C-51, C-52

• Wiring harness between 4WD control module terminal G and connector C-51

• Wiring harness between 4WD control module terminal H and connector C-52

• 4WD control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-51, C-52 and connectors C-47, C-48

• Connectors C-51, C-52 malfunction

• Connectors C-47, C-48 malfunction

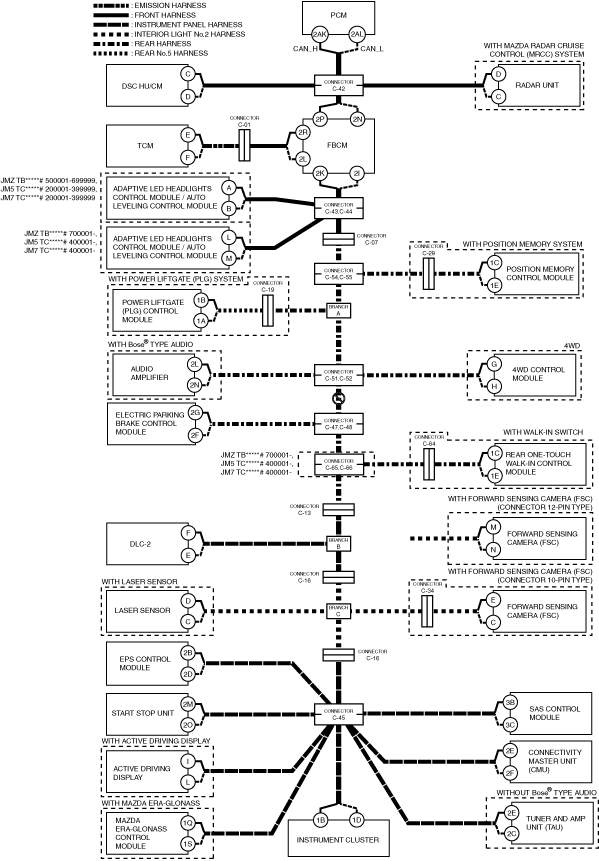

System wiring diagram

ac9wzw00005114

Inspection item

• Connectors C-51, C-52

• Connectors C-47, C-48

• Wiring harness between connectors C-51, C-52 and connectors C-47, C-48

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Electric parking brake control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between electric parking brake control module and connectors C-47, C-48

• Connectors C-47, C-48 malfunction

• Electric parking brake control module malfunction

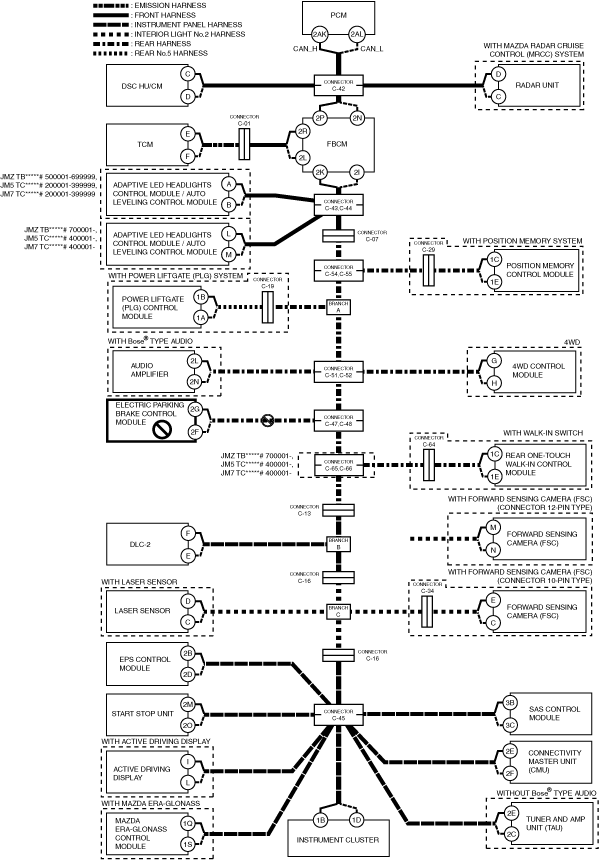

System wiring diagram

ac9wzw00005115

Inspection item

• Electric parking brake control module power supply voltage-related wiring harness and fuse

• Electric parking brake control module body ground related wiring harness

• Electric parking brake control module connector

• Connectors C-47, C-48

• Wiring harness between electric parking brake control module terminal 2G and connector C-47

• Wiring harness between electric parking brake control module terminal 2F and connector C-48

• Electric parking brake control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Rear one-touch walk-in control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between connectors C-64 and connectors C-65, C-66

• Open circuit in wiring harness between Rear one-touch walk-in control module and connector C-64

• Connectors C-64 malfunction

• Connectors C-65, C-66 malfunction

• Rear one-touch walk-in control module malfunction

System wiring diagram

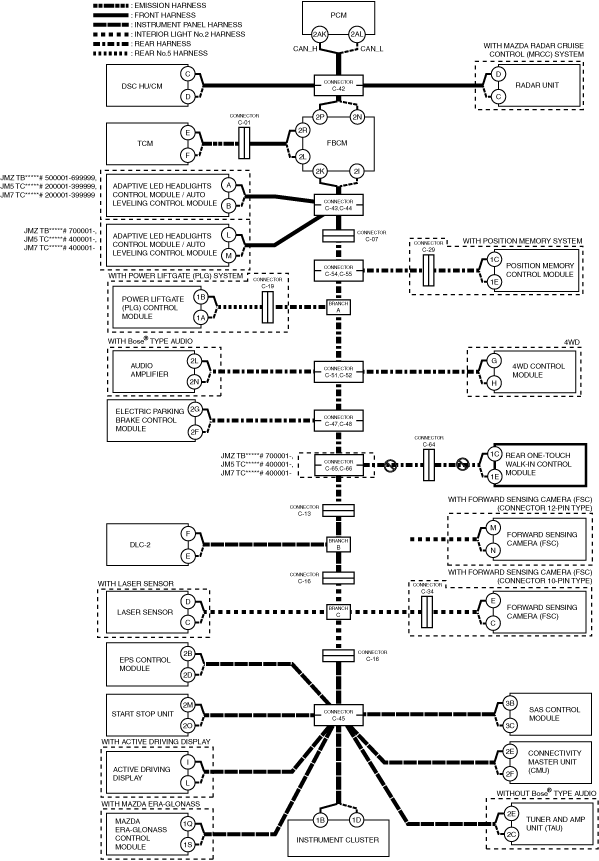

ac9wzw00005831

Inspection item

• Rear one-touch walk-in control module power supply voltage-related wiring harness and fuse

• Rear one-touch walk-in control module body ground related wiring harness

• Rear one-touch walk-in control module connector

• Connectors C-64

• Connectors C-65, C-66

• Wiring harness between electric parking brake control module terminal 1C and connector C-64

• Wiring harness between electric parking brake control module terminal 1E and connector C-64

• Wiring harness between connectors C-65, C-66 and connector C-64

• Rear one-touch walk-in control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-65, C-66 and connector C-13

• Open circuit in wiring harness between connector C-13 and branch B

• Connectors C-65, C-66 malfunction

• Connector C-13 malfunction

System wiring diagram

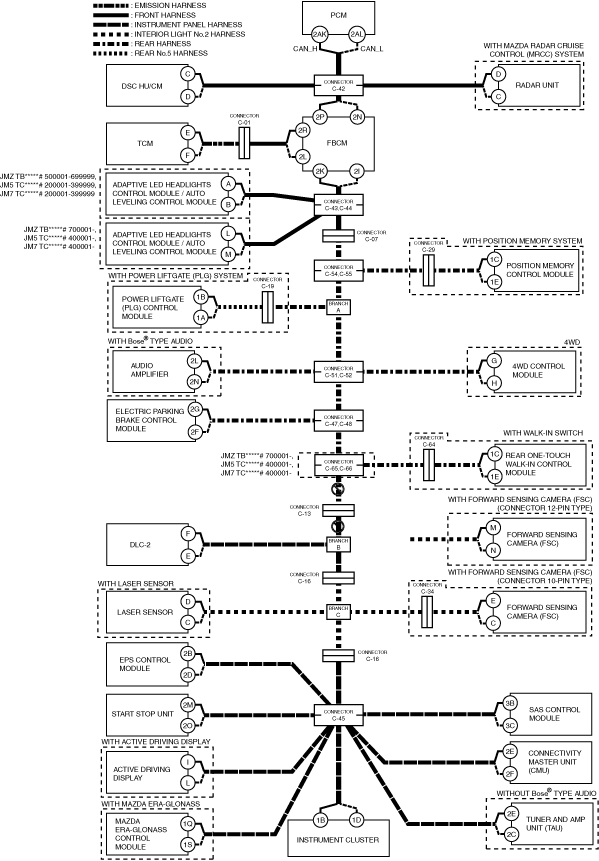

ac9wzw00005832

Inspection item

• Connectors C-65, C-66

• Connector C-13

• Wiring harness between connectors C-65, C-66 and connector C-13

• Wiring harness between connector C-13 and branch B

With laser sensor or forward sensing camera (FSC)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch B and connector C-16

• Open circuit in wiring harness between connector C-16 and branch C

• Connector C-16 malfunction

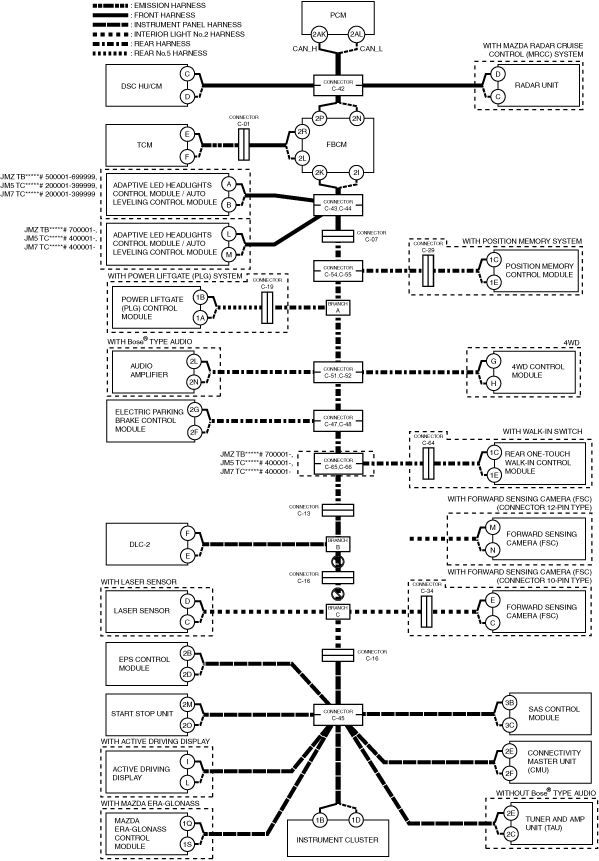

System wiring diagram

ac9wzw00005117

Inspection item

• Connector C-16

• Wiring harness between branch B and connector C-16

• Wiring harness between connector C-16 and branch C

Without laser sensor and forward sensing camera (FSC)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch B and connector C-16

• Open circuit in wiring harness between connector C-16 and connector C-16

• Open circuit in wiring harness between connector C-16 and connector C-45

• Connector C-16 malfunction

• Connector C-45 malfunction

System wiring diagram

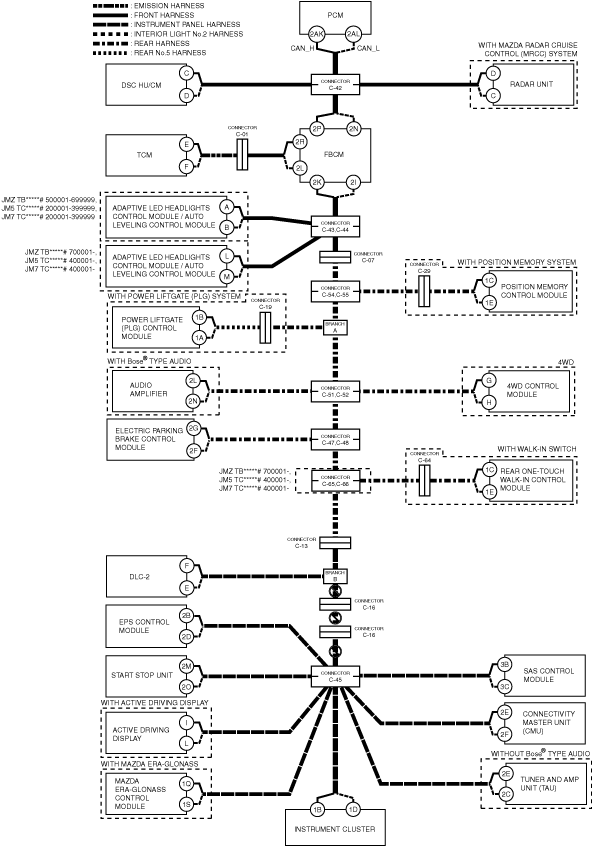

ac9wzw00005118

Inspection item

• Connector C-16

• Connector C-45

• Wiring harness between branch B and connector C-16

• Wiring harness between connector C-16 and connector C-16

• Wiring harness between connector C-16 and connector C-45

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Laser sensor power supply voltage or body ground malfunction

• Open circuit in wiring harness between laser sensor and branch C

• Laser sensor malfunction

System wiring diagram

ac9wzw00005119

Inspection item

• Laser sensor power supply voltage-related wiring harness and fuse

• Laser sensor body ground related wiring harness

• Laser sensor connector

• Wiring harness between laser sensor terminal D and branch C

• Wiring harness between laser sensor terminal C and branch C

• Laser sensor

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Forward sensing camera (FSC) power supply voltage or body ground malfunction

• Open circuit in wiring harness between forward sensing camera (FSC) and connector C-34 (connector 10-pin type)

• Open circuit in wiring harness between connector C-34 and branch C (connector 10-pin type)

• Connector C-34 malfunction (connector 10-pin type)

• Open circuit in wiring harness between forward sensing camera (FSC) and branch C (connector 12-pin type)

• Forward sensing camera (FSC) malfunction

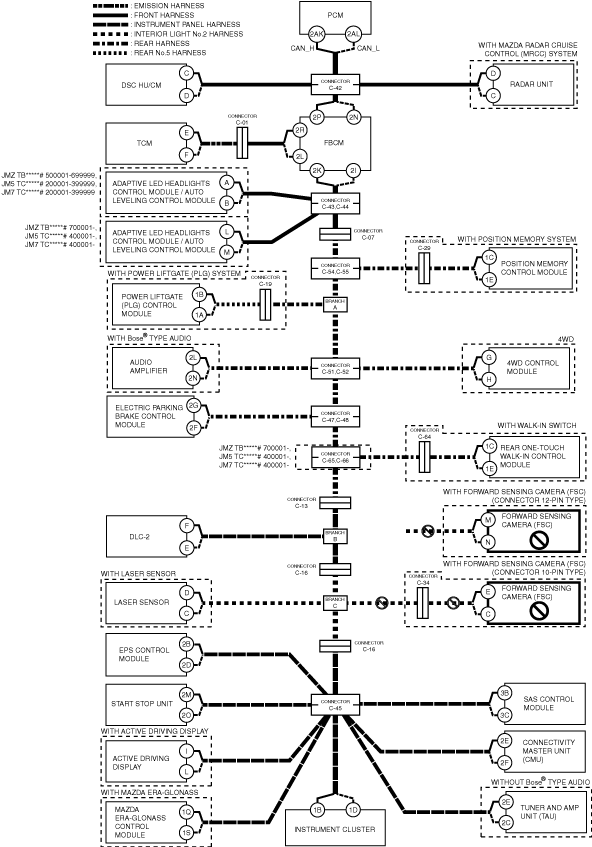

System wiring diagram

ac9wzw00005120

Inspection item

• Forward sensing camera (FSC) power supply voltage-related wiring harness and fuse

• Forward sensing camera (FSC) body ground related wiring harness

• Forward sensing camera (FSC) connector

• Connector C-34 (connector 10-pin type)

• Wiring harness between connector C-34 and branch C (connector 10-pin type)

• Wiring harness between forward sensing camera (FSC) terminal E and connector C-34 (connector 10-pin type)

• Wiring harness between forward sensing camera (FSC) terminal C and connector C-34 (connector 10-pin type)

• Wiring harness between forward sensing camera (FSC) terminal M and branch C (connector 12-pin type)

• Wiring harness between forward sensing camera (FSC) terminal N and branch C (connector 12-pin type)

• Forward sensing camera (FSC)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch C and connector C-16

• Open circuit in wiring harness between connector C-16 and connector C-45

• Connector C-16 malfunction

• Connector C-45 malfunction

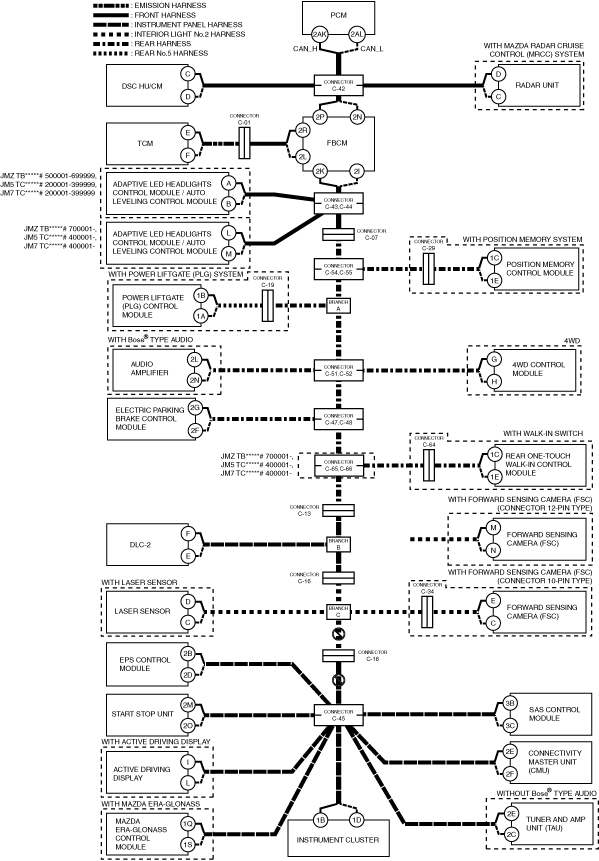

System wiring diagram

ac9wzw00005121

Inspection item

• Connector C-16

• Connector C-45

• Wiring harness between branch C and connector C-16

• Wiring harness between connector C-16 and connector C-45

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• EPS control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between EPS control module and connector C-45

• Connector C-45 malfunction

• EPS control module malfunction

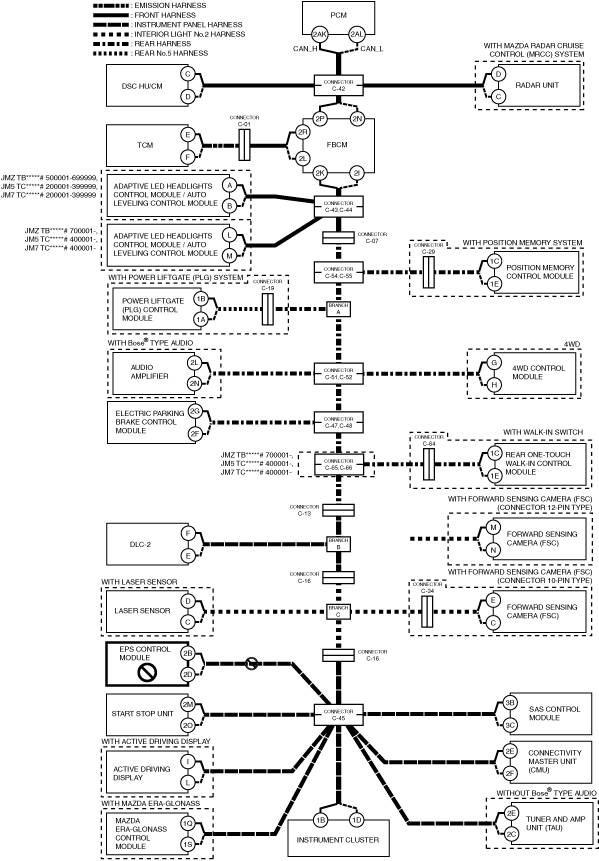

System wiring diagram

ac9wzw00005122

Inspection item

• EPS control module power supply voltage-related wiring harness and fuse

• EPS control module body ground related wiring harness

• EPS control module connector

• Connector C-45

• Wiring harness between EPS control module terminal 2B and connector C-45

• Wiring harness between EPS control module terminal 2D and connector C-45

• EPS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Start stop unit power supply voltage or body ground malfunction

• Open circuit in wiring harness between start stop unit and connector C-45

• Connector C-45 malfunction

• Start stop unit malfunction

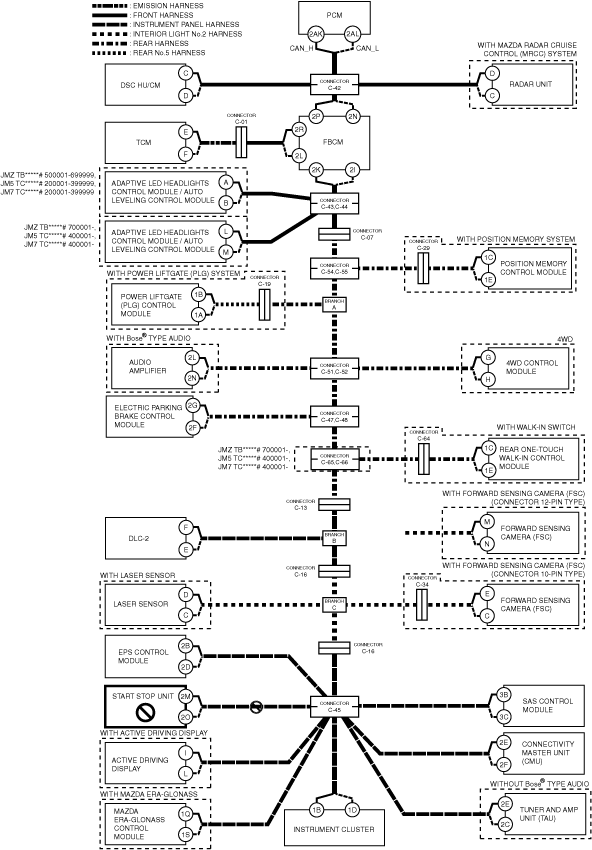

System wiring diagram

ac9wzw00005123

Inspection item

• Start stop unit power supply voltage-related wiring harness and fuse

• Start stop unit body ground related wiring harness

• Start stop unit connector

• Connector C-45

• Wiring harness between start stop unit terminal 2M and connector C-45

• Wiring harness between start stop unit terminal 2O and connector C-45

• Start stop unit

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• SAS control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between SAS control module and connector C-45

• Connector C-45 malfunction

• SAS control module malfunction

System wiring diagram

ac9wzw00005124

Inspection item

Warning

• Handling the component parts of the SRS air bag system improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag system components of the SRS air bag system.

(See AIR BAG SYSTEM SERVICE WARNINGS.)

(See AIR BAG SYSTEM SERVICE CAUTIONS.)

• SAS control module power supply voltage-related wiring harness and fuse

• SAS control module body ground related wiring harness

• SAS control module connector

• Connector C-45

• Wiring harness between SAS control module terminal 3B and connector C-45

• Wiring harness between SAS control module terminal 3C and connector C-45

• SAS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Active driving display power supply voltage or body ground malfunction

• Open circuit in wiring harness between active driving display and connector C-45

• Connector C-45 malfunction

• Active driving display malfunction

System wiring diagram

ac9wzw00005125

Inspection item

• Active driving display power supply voltage-related wiring harness and fuse

• Active driving display body ground related wiring harness

• Active driving display connector

• Connector C-45

• Wiring harness between active driving display terminal I and connector C-45

• Wiring harness between active driving display terminal L and connector C-45

• Active driving display

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Connectivity master unit (CMU) power supply voltage or body ground malfunction

• Open circuit in wiring harness between connectivity master unit (CMU) and connector C-45

• Connector C-45 malfunction

• Connectivity master unit (CMU) malfunction

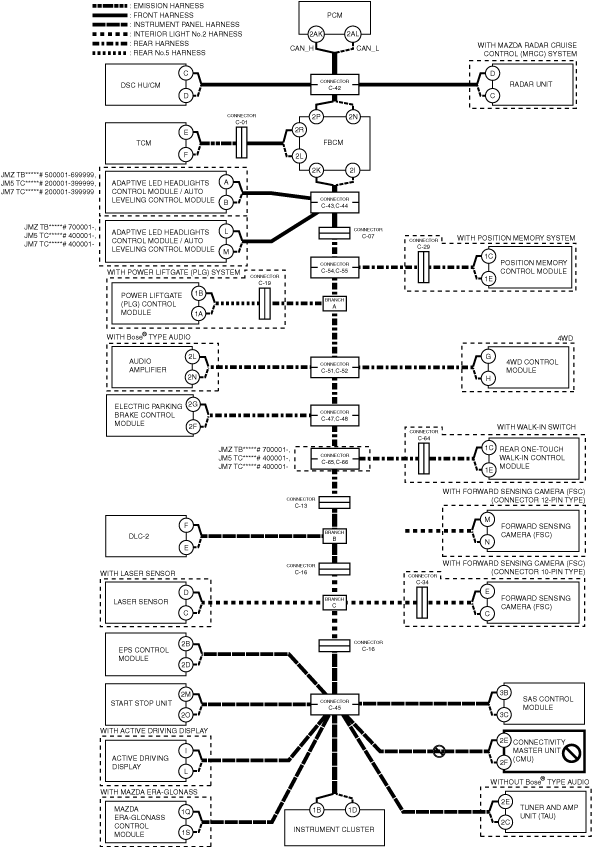

System wiring diagram

ac9wzw00005126

Inspection item

• Connectivity master unit (CMU) power supply voltage-related wiring harness and fuse

• Connectivity master unit (CMU) body ground related wiring harness

• Connectivity master unit (CMU) connector

• Connector C-45

• Wiring harness between connectivity master unit (CMU) terminal 2E and connector C-45

• Wiring harness between connectivity master unit (CMU) terminal 2F and connector C-45

• Connectivity master unit (CMU)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• MAZDA ERA-GLONASS control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between MAZDA ERA-GLONASS control module and connector C-45

• Connector C-45 malfunction

• MAZDA ERA-GLONASS control module malfunction

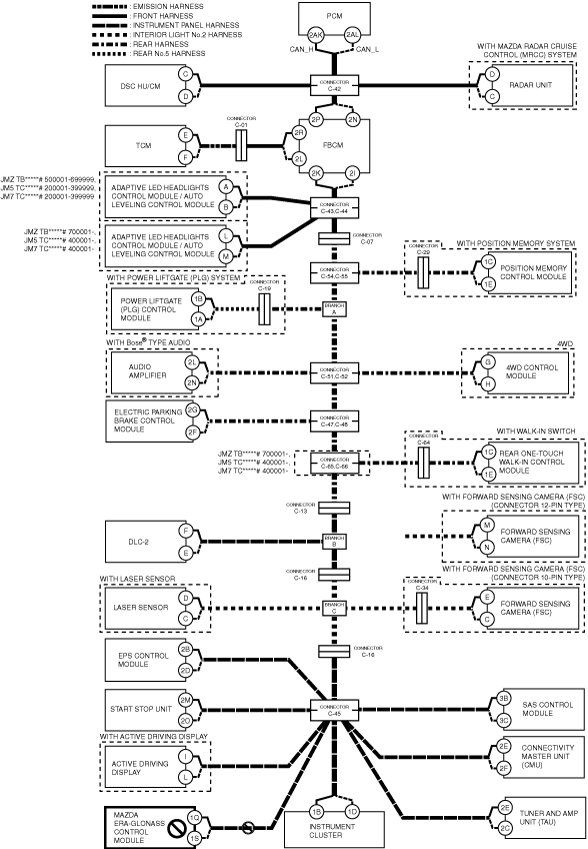

System wiring diagram

ac9wzw00005127

Inspection item

• MAZDA ERA-GLONASS control module power supply voltage-related wiring harness and fuse

• MAZDA ERA-GLONASS control module body ground related wiring harness

• MAZDA ERA-GLONASS control module connector

• Connector C-45

• Wiring harness between MAZDA ERA-GLONASS control module terminal 1Q and connector C-45

• Wiring harness between MAZDA ERA-GLONASS control module terminal 1S and connector C-45

• MAZDA ERA-GLONASS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Instrument cluster power supply voltage or body ground malfunction

• Open circuit in wiring harness between instrument cluster and connector C-45

• Connector C-45 malfunction

• Instrument cluster malfunction

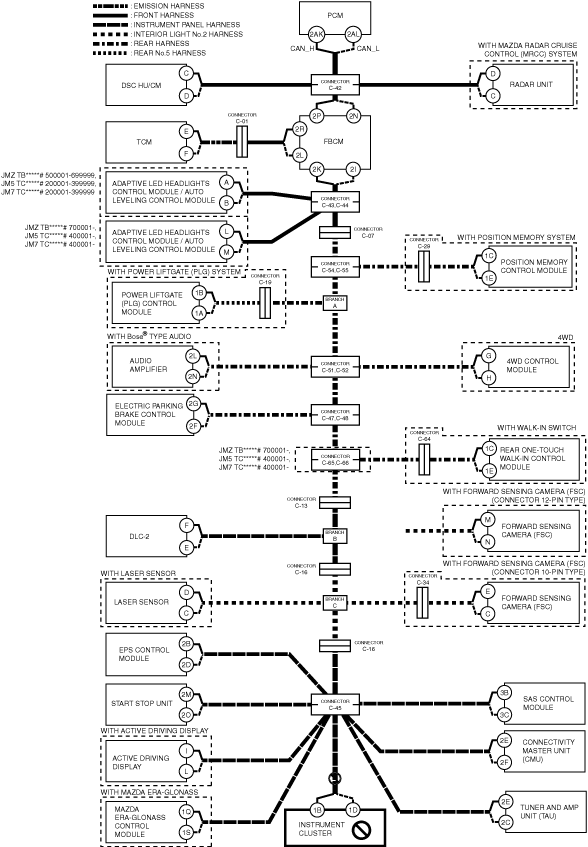

System wiring diagram

ac9wzw00005128

Inspection item

• Instrument cluster power supply voltage-related wiring harness and fuse

• Instrument cluster body ground related wiring harness

• Instrument cluster connector

• Connector C-45

• Wiring harness between instrument cluster terminal 1B and connector C-45

• Wiring harness between instrument cluster terminal 1D and connector C-45

• Instrument cluster
