GENERATOR DISASSEMBLY/ASSEMBLY [WITH i-ELOOP (SKYACTIV-G 2.5T)]

id1317040050r4

Special Service Tool (SST)

1. : Mazda SST number 2. : Global SST number
1: 49 L018 002 2: – Serrated bit

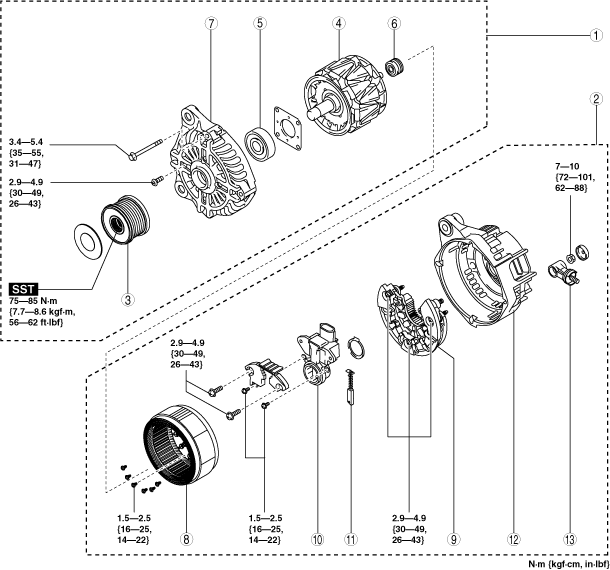

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

ac9uuw00006468

1	Rotor component
2	Stator coil component
3	Pulley (See Pulley Disassembly/Assembly Note.)
4	Rotor
5	Front bearing
6	Rear bearing
7	Front cover
8	Stator coil
9	Rectifier
10	Brush holder
11	Brush (See Brush Disassembly Note.) (See Brush Assembly Note.)
12	Rear cover
13	Terminal B component

Pulley Disassembly/Assembly Note

1. Disassemble/assemble the pulley using the SST.

ac9uuw00006469

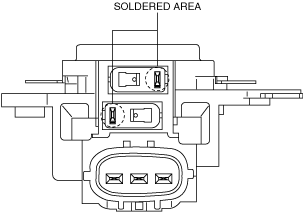

Brush Disassembly Note

Caution

• Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

ac9uuw00006470

1. Melt the solder and remove the brush from the brush holder.

Brush Assembly Note

Caution

• Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

ac9uuw00006470

1. Press the brush into the brush holder with it facing in the direction shown in the figure.

ac9uuw00006471

2. Solder the brush to the brush holder.
