FOREWORD [360°VIEW MONITOR CONTROL MODULE]

id1502c7054100

Special Service Tool (SST)

49US 15 1A0

PROBE KIT

• If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure. (See Troubleshooting Procedure.)

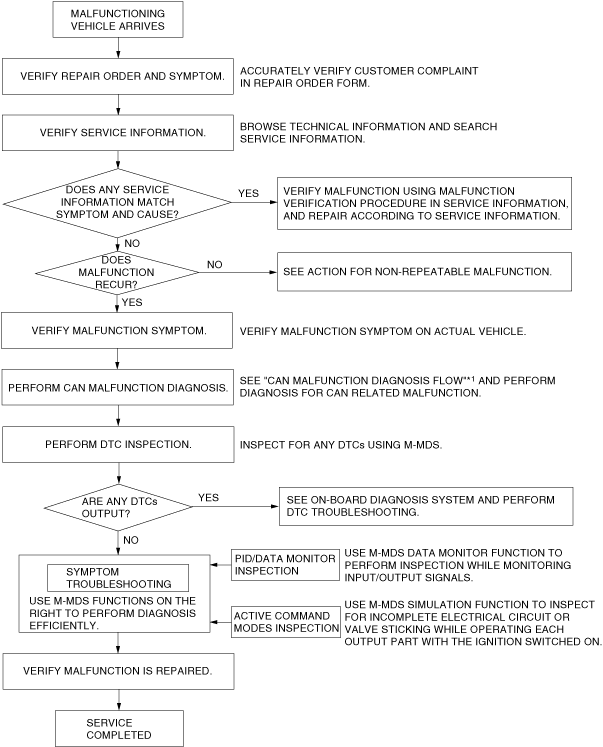

Troubleshooting Procedure

ac5wzw00009538

*1 :(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D.].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

Action for Non-repeatable Malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

? Verify that a DTC has been recorded in the memory. (See DTC INSPECTION [360°VIEW MONITOR CONTROL MODULE].)

? Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.

? Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.

am6xuw00010122

? Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM.)

Note

• SST (Reference): PROBE KIT (49US 15 1A0)

am6zzw00016954
