SYSTEM WIRING DIAGRAM [SMART CITY BRAKE SUPPORT [REVERSE] (SCBS R)]

id1503b1003000

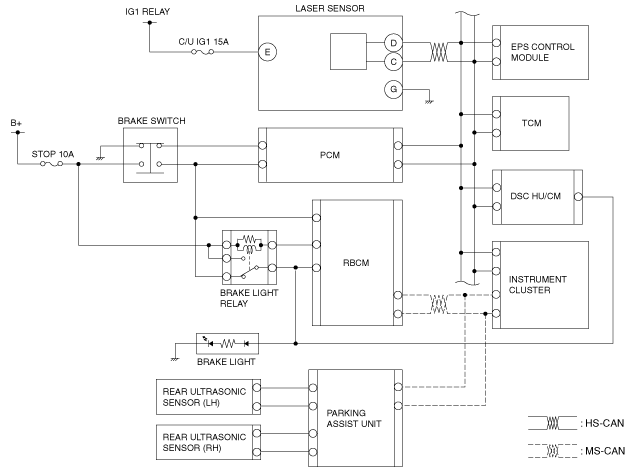

System wiring diagram (Without Mazda Radar Cruise Control (MRCC) system) (VIN serial No. 100001—)

ac9wzw00005218

System wiring diagram (Without Mazda Radar Cruise Control (MRCC) system) (VIN serial No. 200001— (Except European (L.H.D.) specs.), 500001— (European (L.H.D.) specs.))

ac9wzw00005219

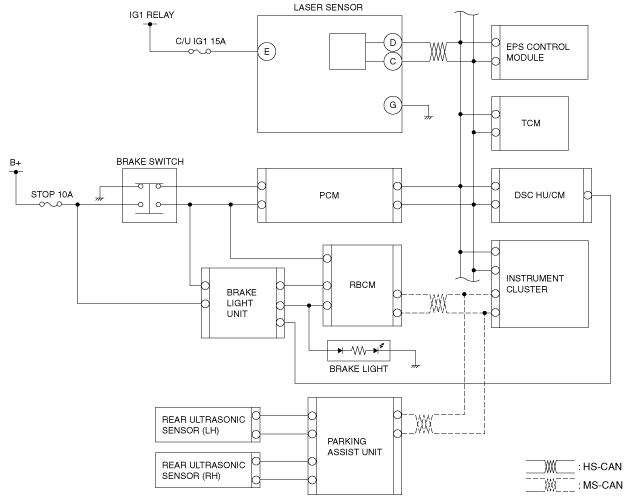

System wiring diagram (With Mazda Radar Cruise Control (MRCC) system) (VIN serial No. 100001—)

ac9wzw00005220

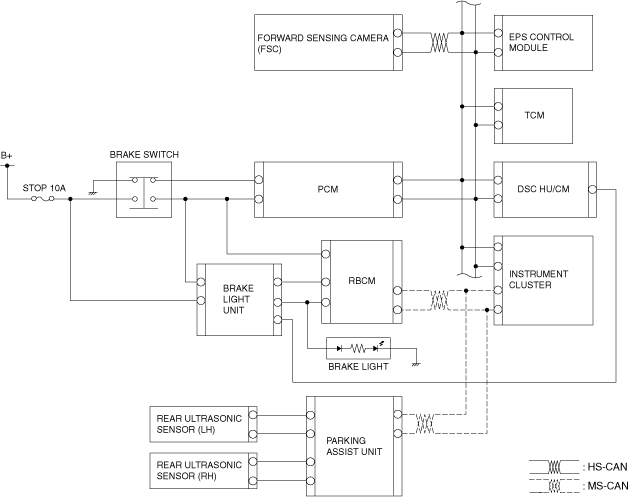

System wiring diagram (With Mazda Radar Cruise Control (MRCC) system) (VIN serial No. 200001— (Except European (L.H.D.) specs.), 500001— (European (L.H.D.) specs.))

ac9wzw00005221
