COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0112q5801000

1.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

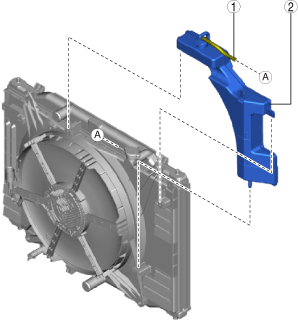

ac9uuw00006447

1
Hose
2
Coolant reserve tank
(See Coolant Reserve Tank Removal Note.)
(See Coolant Reserve Tank Installation Note.)

Coolant Reserve Tank Removal Note

1.  Remove the wiring harness clips shown in the figure.

ac9wzw00003787

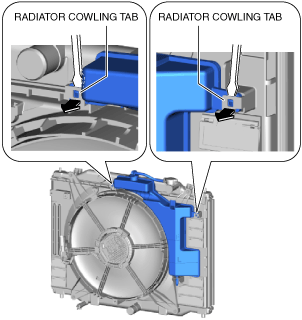

2.  Remove the coolant reserve tank from the radiator cowling tabs shown in the figure by lifting them with a flathead screwdriver.

ac9uuw00006449

Coolant Reserve Tank Installation Note

1.  Install the coolant reserve tank.

2.  Install the wiring harness clips shown in the figure.

ac9wzw00003787
Note
•  Install the front wiring harness so that it is positioned in front of the vehicle ribs on the coolant reserve tank.
