THREE WAY SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0113q4070900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

3.  Remove in the order indicated in the table.

ac9uuw00009635

1
Connector
2
Vacuum hose No.1
(See Vacuum Hose Installation Note.)
3
Vacuum hose No.2
(See Vacuum Hose Installation Note.)
4
Three way solenoid valve

4.  Install in the reverse order of removal.


Vacuum Hose Installation Note

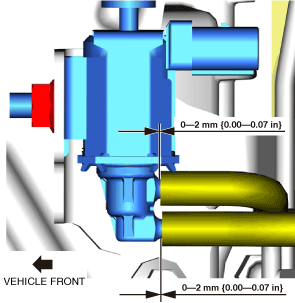

1.  Install the vacuum hose as shown in the figure.

ac9uuw00009636
