EGR COOLER INSPECTION [SKYACTIV-G 2.5T]

id0116q4099800

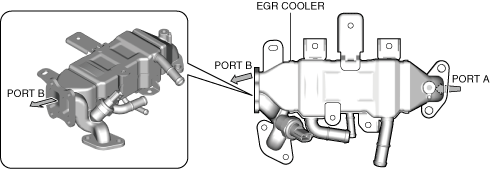

1.  Verify that there is airflow from port B when pressure is applied from port A.

•  If there is no airflow, replace the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

ac9uuw00009321

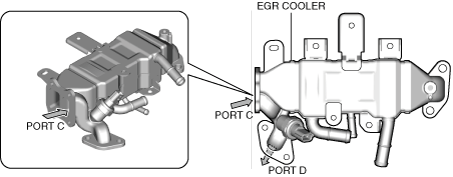

2.  Verify that there is airflow from port D when pressure is applied from port C.

•  If there is no airflow, replace the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

ac9uuw00009322
