EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0116q4099000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

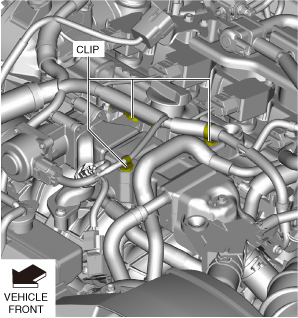

4.  Disconnect the wiring harness clips from the EGR cooler.

ac9uuw00009515

5.  Disconnect the EGR valve connector. (See EGR VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

6.  Disconnect the exhaust gas pressure sensor connector. (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

7.  Disconnect the MAP sensor/IAT sensor No.2 connector. (See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

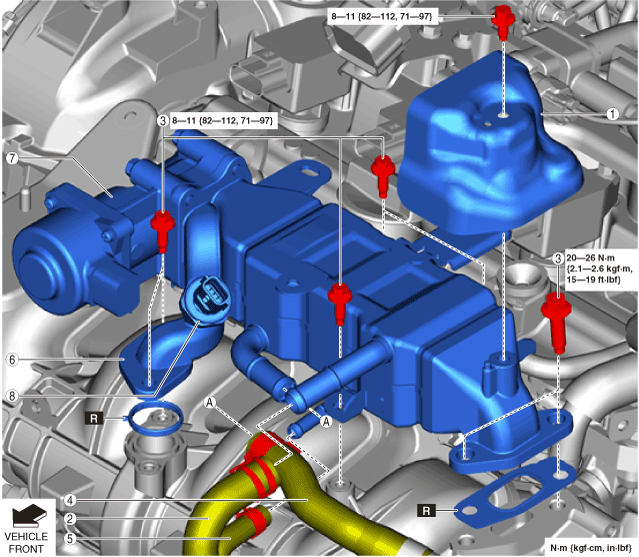

8.  Remove in the order indicated in the table.

ac9uuw00009371

1
Insulator
2
Water hose No.1
(See Water Hose No.1 Installation Note.)
3
EGR cooler installation bolt
(See EGR Cooler Installation Bolt Removal Note.)
(See EGR Cooler Installation Bolt Installation Note.)
4
Water hose No.2
5
Water hose No.3
6
EGR cooler
7
EGR valve
8
Exhaust gas pressure sensor
(See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

9.  Install in the reverse order of removal.


EGR Cooler Installation Bolt Removal Note

1.  Disconnect the vacuum hose from the vacuum pipe.

ac9uuw00009518

2.  Remove the bolts shown in the figure and set the vacuum pipe aside.

ac9uuw00009519

3.  Remove the EGR cooler installation bolts.


Water Hose No.3 Installation Note

1.  Install the water hose No.3 as shown in the figure.

ac9uuw00009620

Water Hose No.2 Installation Note

1.  Install the water hose No.2 as shown in the figure.

ac9uuw00009621

EGR Cooler Installation Bolt Installation Note

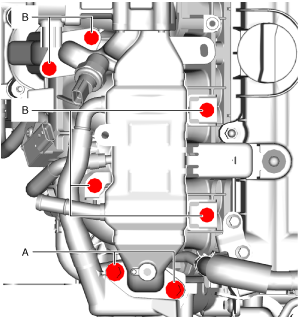

1.  Install the EGR cooler installation bolts.

ac9uuw00009520
Tightening torque
A: 20—26 N·m {2.1—2.6 kgf·m, 15—19 ft·lbf}
B: 8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}

2.  Install the vacuum pipe.

ac9uuw00009519
Tightening torque
8—11 N·m {82—112 kgf·cm, 71—97 in·lbf}

3.  Connect the vacuum hose as shown in the figure.

ac9uuw00009521

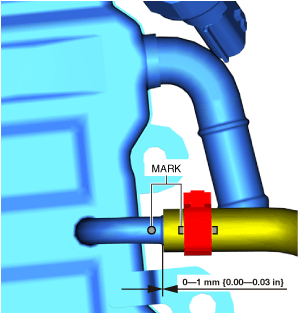

Water Hose No.1 Installation Note

1.  Install the water hose No.1 as shown in the figure.

ac9uuw00009622
