CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.5T]

id0116q4800500

Taiwan

Leakage inspection

1.  Perform the following procedures:

•  Do not operate CV solenoid valve.

•  Assemble the hose used for inspection to port A.

•  Cover ports B and C with the caps.

ac9wzw00005720

Caution

•  Do not apply a pressure 20 kPa {150 mmHg, 5.91 inHg} or more to the charcoal canister for 1 min. or more. Doing so will damage the charcoal canister.

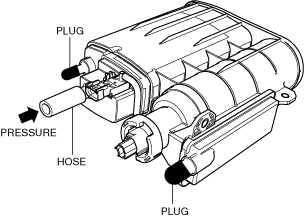

2.  Apply pressure (19.6 kPa {147 mmHg, 5.79 inHg}) through the hose, and verify that air does not leak from the charcoal canister.

ac9wzw00005721

•  If there is airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

•  If there is no airflow, perform the following “Airflow Inspection”. (See Airflow inspection.)

Airflow inspection

1.  Perform the following procedure to verify the charcoal canister airflow.

Between port A and port C

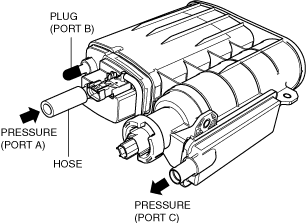

1.  Plug the port B.

ac9wzw00005722

2.  Apply a pressure of 1.8 kPa {14 mmHg, 0.53 inHg} to port A.

3.  Verify that there is airflow from port C.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

Between port B and port C

1.  Plug the port A.

ac9wzw00005723

2.  Apply a pressure of 2.0 kPa {15 mmHg, 0.59 inHg} to port C.

3.  Verify that there is airflow from port B.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

Except Taiwan

Leakage Inspection

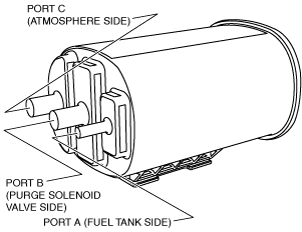

1.  Perform the following procedures:

•  Assemble the hose used for inspection to port A.

•  Cover ports B and C with the caps.

ac9uuw00009623

Caution

•  Do not apply a pressure 20 kPa {150 mmHg, 5.91 inHg} or more to the charcoal canister for 1 min. or more. Doing so will damage the charcoal canister.

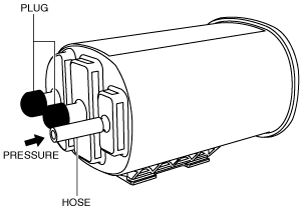

2.  Apply pressure (19.6 kPa {147 mmHg, 5.79 inHg}) through the hose, and verify that air does not leak from the charcoal canister.

ac9uuw00009624

•  If there is airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

•  If there is no airflow, perform the following “Airflow Inspection”. (See Airflow Inspection.)

Airflow Inspection

1.  Perform the following procedure to verify the charcoal canister airflow.

Between port A and port C

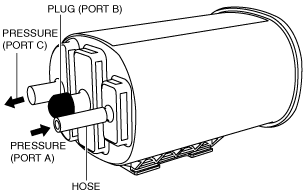

1.  Plug the port B.

ac9uuw00009625

2.  Apply a pressure of 0.98 kPa {7.4 mmHg, 0.29 inHg} to port A.

3.  Verify that there is airflow from port C.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

Between port B and port C

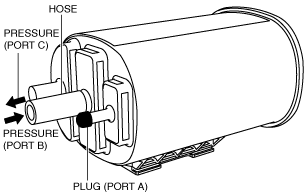

1.  Plug the port A.

ac9uuw00009626

2.  Apply a pressure of 0.98 kPa {7.4 mmHg, 0.29 inHg} to port C.

3.  Verify that there is airflow from port B.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
