CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]
id0116q4096400
Taiwan
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the floor under cover No.2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
3. Remove the floor under cover No.1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
4. Remove in the order indicated in the table.

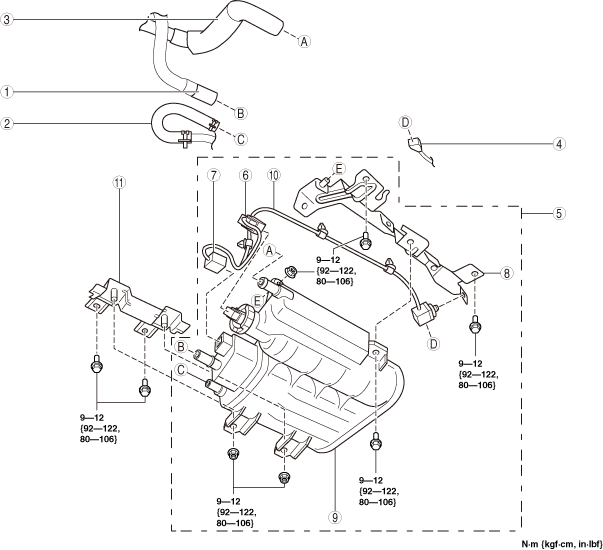

ac9wzw00005733
|
|
1
|
Quick release connector
|
|
2
|
Evaporative hose No.1
|
|
3
|
Evaporative hose No.2
|
|
4
|
Middle harness connector
|
|
5
|
Charcoal canister component
|
|
6
|
CV solenoid valve connector
|
|
7
|
Fuel tank pressure sensor connector
|
|
8
|
Charcoal canister bracket No.1
|
|
9
|
Charcoal canister
|
|
10
|
Wiring harness
|
|
11
|
Charcoal canister bracket No.2
|
5. Install in the reverse order of removal.
Evaporative hose No.2 installation note
1. Install the evaporative hose No.2 as shown in the figure.
ac9wzw00005734
|
Evaporative hose No.1 installation note

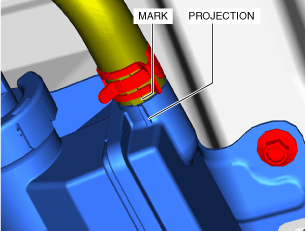

1. Install the evaporative hose No.1 as shown in the figure.
ac9uuw00009631
|
Except Taiwan
1. Remove the floor under cover No.2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
2. Remove the floor under cover No.1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

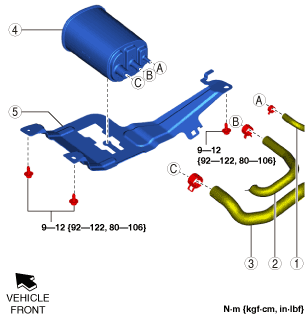

ac9uuw00009632
|
|
1
|
Evaporative hose No.1
|
|
2
|
Evaporative hose No.2
|
|
3
|
Evaporative hose No.3
|
|
4
|
Charcoal canister
(See Taiwan.)
|
|
5
|
Charcoal canister bracket
|
4. Install in the reverse order of removal.
Charcoal Canister Removal Note

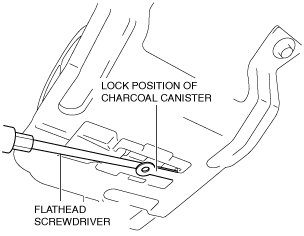

1. Release the lock as shown in the figure.
ac9uuw00009633
|
2. Remove the charcoal canister.
Evaporative Hose Installation Note

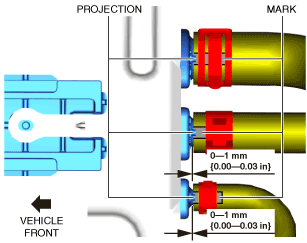

1. Install the evaporative hose as shown in the figure.
ac9uuw00009634
|
