EGR VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0116q4801000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

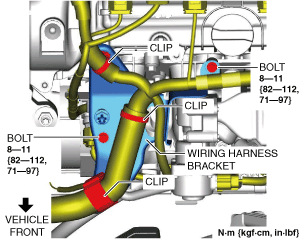

3.  Remove the bolts and clips shown in the figure and remove the wiring harness bracket.

ac9uuw00009512

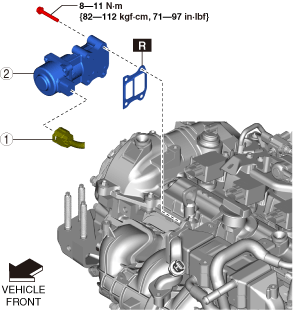

4.  Remove in the order indicated in the table.

ac9uuw00009513

1
EGR valve connector
2
EGR valve

5.  Install in the reverse order of removal.
