PURGE SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0116q4804300

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

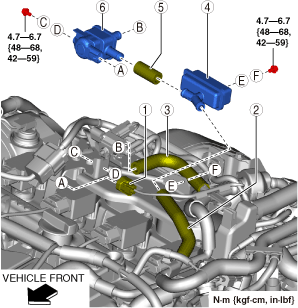

3. Remove in the order indicated in the table.

ac9uuw00009355

1	Purge solenoid valve connector
2	Evaporative hose No.1 (See Evaporative Hose No.1 Installation Note.)
3	Evaporative hose No.3 (See Evaporative Hose No.3 Installation Note.)
4	Catch tank
5	Evaporative hose No.2 (See Evaporative Hose No.2 Installation Note.)
6	Purge solenoid valve

4. Install in the reverse order of removal.

Evaporative Hose No.2 Installation Note

1. Install the evaporative hose No.2 as shown in the figure.

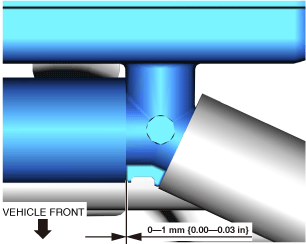

Catch tank side

ac9uuw00009507

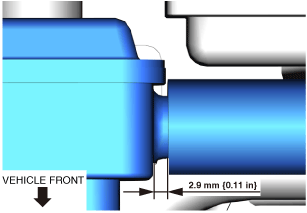

Purge solenoid valve side

ac9uuw00009617

Evaporative Hose No.3 Installation Note

1. Install the evaporative hose No.3 as shown in the figure.

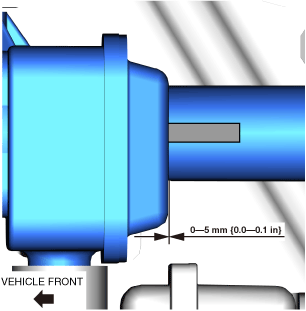

Purge solenoid valve side

ac9uuw00009357

Evaporative Hose No.1 Installation Note

1. Install the evaporative hose No.1 as shown in the figure.

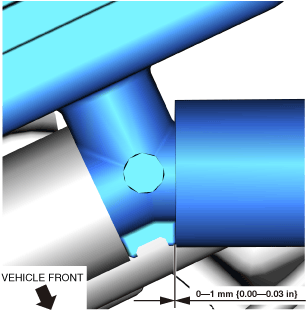

Catch tank side

ac9uuw00009358
