DC-DC CONVERTER INSPECTION [WITHOUT i-ELOOP (SKYACTIV-G 2.5T)]
id0117000047t3
DC-DC Converter Operation Inspection
1. Perform the KOER self-test.
-
• If the following DTCs are detected, repair the applicable malfunctioning part according to the applicable DTC troubleshooting. (See
DTC TABLE [PCM (SKYACTIV-G 2.5T)].)
-
? P058A:00, P0A8D:00, P0A94:00, U0298:00, U1007:00
2. Inspect the battery.
-
3. When the engine is restarted by the i-stop control, verify that the following measured voltages are not lower than 11.5V.
-
• humidity sensor/auto light sensor/rain sensor supply terminal (vehicle wiring harness-side connector terminal D)
• Tuner and amp unit (TAU) supply terminal (vehicle wiring harness-side connector terminal 2T)
-
? If it cannot be verified, go to the next step.

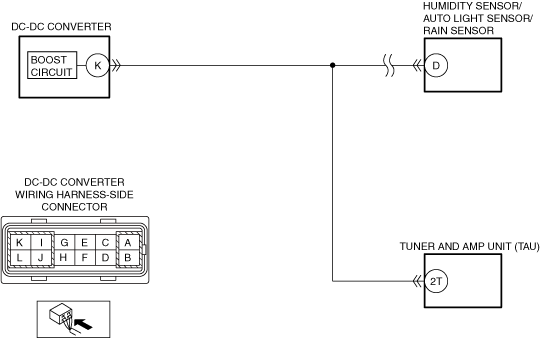

4. Inspect the wiring harness between the following terminals for an open or short circuit.
-
• Between DC-DC converter terminal K and humidity sensor/auto light sensor/rain sensor terminal D
• Between DC-DC converter terminal K and tuner and amp unit (TAU) terminal 2T
-
? If there is any open or short circuit in the wiring harness, repair or replace the malfunctioning part.
