i-stop OFF SWITCH INSPECTION [SKYACTIV-G 2.5T]

id0140h0888900

With i-stop System

Note

• The i-stop OFF switch is integrated with the cluster switch.

• If the i-stop OFF switch is to be replaced, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

Resistance inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

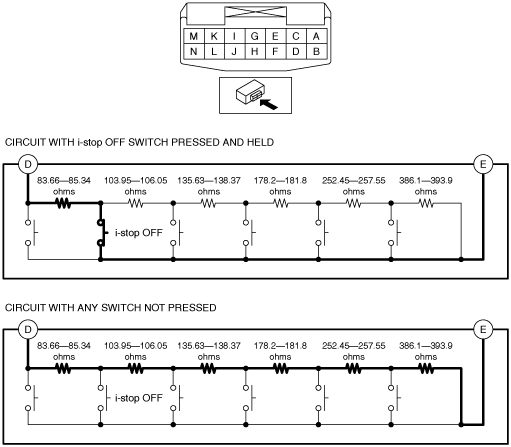

3. Measure the resistance between cluster switch terminals D and E under the following conditions.

Resistance with i-stop OFF switch pressed and held

• 83.66—85.34 ohms

Resistance with any switch not pressed

• 1,139.99—1,163.01 ohms

ac9wzw00003863

• If not within the specification, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

LED illumination inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

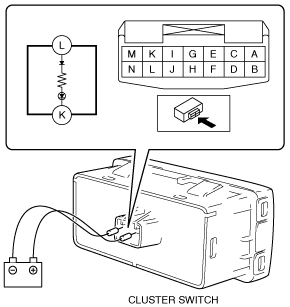

3. Apply battery positive voltage to cluster switch terminal L, and connect terminal K to ground.

ac9wzw00003864

4. Verify that the LED is turned on.

• If the LED does not turn on, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
