CLUSTER SWITCH REMOVAL/INSTALLATION

id091700601500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the driver-side front scuff plate. (Se FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

3.  Remove the driver-side front side trim. (Se FRONT SIDE TRIM REMOVAL/INSTALLATION.)

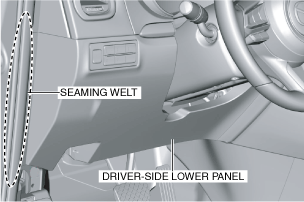

4.  Partially peel back the seaming welt.

ac9uuw00007484

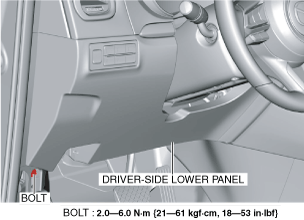

5.  Remove the bolt.

ac9uuw00005617

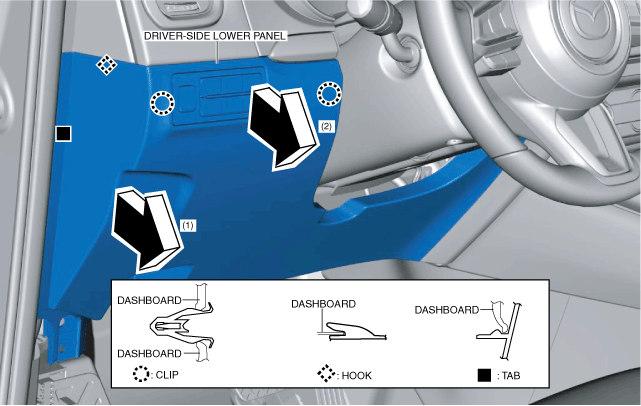

6.  Pull the driver-side lower panel in the direction of the arrow in the order of (1), (2) while detaching the hook, clips and tab.

ac9uuw00005618

7.  Set the driver-side lower panel aside.

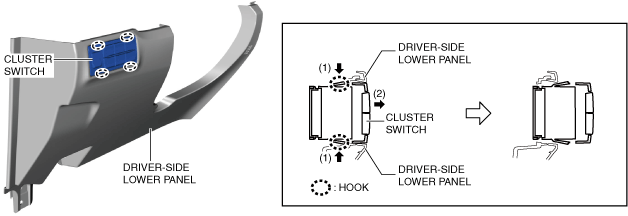

8.  Remove the hooks in the direction of the arrow in the order of (1), (2) shown in the figure.

ac9wzw00005621

9.  Disconnect the cluster switch connector.

10.  Install in the reverse order of removal.
