MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO.2 REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0140h0900400

Note

•  The MAP sensor and IAT sensor No.2 cannot be removed as a single unit. When replacing the MAP sensor or IAT sensor No.2, replace the MAP sensor/IAT sensor No.2.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

3.  Disconnect the MAP sensor/IAT sensor No.2 connector.

4.  Remove the screw.

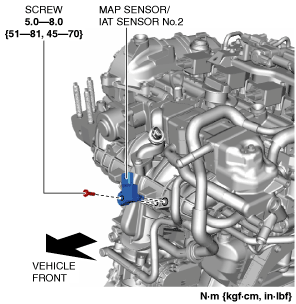

ac9uuw00006043

5.  Remove the MAP sensor/IAT sensor No.2.

6.  Install in the reverse order of removal.
