REAR TRAILING LINK REMOVAL/INSTALLATION

id021400800100

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2.  Remove the protector. (See Protector Installation Note.)

ac9uuw00007958

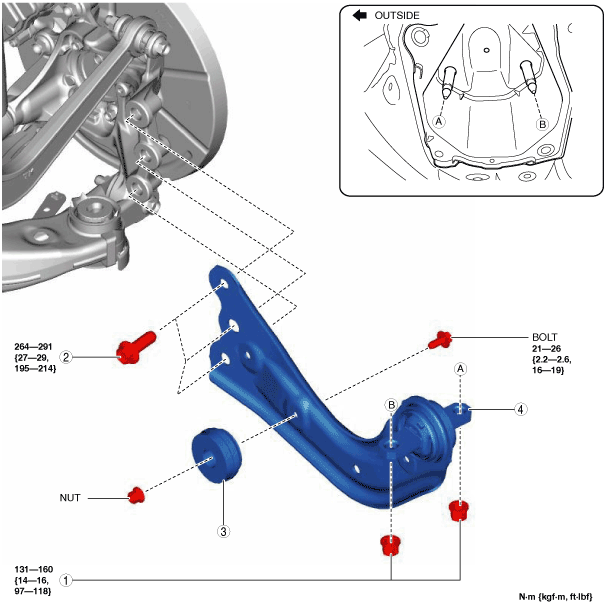

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal. (See Suspension Link Installation Note.)

5.  When replacing the rear trailing link, inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT.)

ac9uuw00007959

Suspension Link Installation Note

1.  When installing the joint section with a rubber bushing, perform the following procedures.

(1)  Temporarily tighten the nut with the vehicle lifted up.

(2)  Lower the vehicle to the ground and tighten the nut to the specified torque.

Rear Trailing Link Installation Note

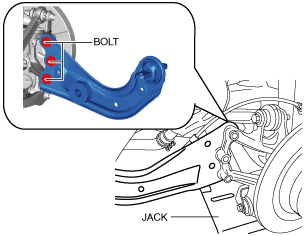

1.  Install the rear trailing link installation bolts using a jack.

ac9uuw00007960

2.  Install the rear trailing link installation nut.

Protector Installation Note

1.  Insert the protector positioning pin into the rear lateral link.

ac9uuw00007961

2.  Tighten the bolts to the specified torque.

3.  Install the fasteners.
