WHEEL HUB, STEERING KNUCKLE INSPECTION

id031100800300


Front Wheel Bearing Excessive Play Inspection

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

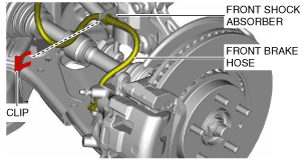

2.  Remove the clip from the front shock absorber.

ac9uuw00008016

3.  Remove the front brake hose from the front shock absorber.

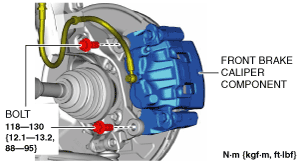

4.  Remove the front brake caliper component installation bolts.

ac9uuw00008017

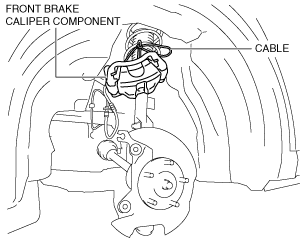

5.  Remove the front brake caliper component and suspend it out of the way using a cable.

ac9uuw00008018

6.  Remove the front disc plate. (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.)

7.  Install the magnetic base and dial gauge as shown in the figure and measure the wheel bearing axial excessive play.

ac4ccw00002043
Front wheel bearing maximum play
0.05 mm {0.002 in}
•  If it exceeds the maximum specification, replace the wheel hub bearing. (See WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION.)
