ELECTRIC AT OIL PUMP REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL]

id0517i2117600

Caution

•  Do not drop or apply a shock to the electric AT oil pump. Replace the electric AT oil pump if it has been dropped or received an impact.

•  Do not disassemble the electric AT oil pump. Replace the electric AT oil pump if it has been disassembled.

•  Make sure that there is no silicone sealant or other foreign matter in the electric AT oil pump and transaxle. Otherwise, it could cause a malfunction.

1.  Turn the steering wheel left until it locks.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the front splash shield (LH). (See FRONT SPLASH SHIELD REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

am3zzw00012649

5.  Install in the reverse order of removal.

6.  Adjust the ATF level. (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT [GW6A-EL, GW6AX-EL].)

Electric AT Oil Pump Installation Note

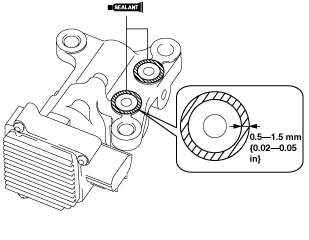

1.  Apply a light coat of silicon sealant (TB1217E) to the contact surfaces of the electric AT oil pump and end cover.

am3zzw00012650

Caution

•  If any old sealant gets into the side cover during installation of the electric AT oil pump, trouble may occur in the end cover and electric AT oil pump, and clean with cleaning fluids.

•  Do not damage the O-ring installation area and the sealing surface.

•  To apply silicone sealant securely, clean away the oil on the sealing surface before applying silicone sealant.

2.  Install the electric AT oil pump before the applied sealant starts to harden.
