AIR FILTER REMOVAL/INSTALLATION

id071100360100

1.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

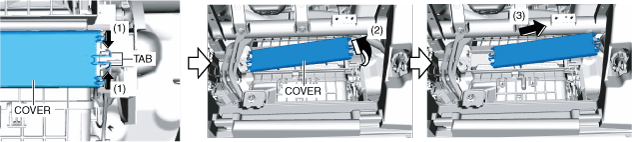

2.  Move the cover in the direction of arrow (2) shown in the figure while pressing the tabs (1).

ac9wzw00003570

3.  Remove the cover in the direction of arrow (3) shown in the figure.

4.  Remove the air filter.

ac9wzw00003571

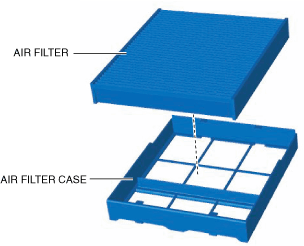

5.  Remove the air filter case.

ac9wzw00003572

6.  Install in the reverse order of removal.
