SOLAR RADIATION SENSOR REMOVAL/INSTALLATION

id074000802800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION.)

3.  Remove the front center speaker. (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION.)

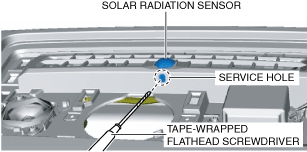

4.  Insert a tape-wrapped flathead screwdriver to the service hole.

ac9wzw00003696

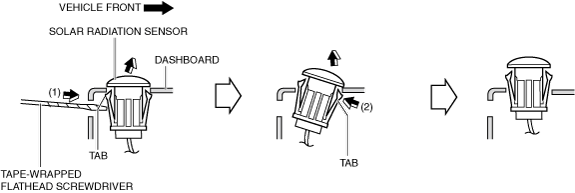

5.  Move the tape-wrapped flathead screwdriver in the direction of the arrow (1), and press out the tab from the dashboard as shown in the figure.

ac9wzw00003697

6.  Insert your hand from front center speaker opening and while pressing the solar radiation sensor tab in the direction of arrow (2) shown in the figure, press out the solar radiation sensor from the dashboard.

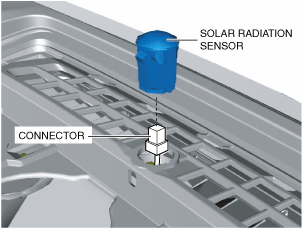

7.  Disconnect the connector.

ac9wzw00003698

8.  Remove the solar radiation sensor.

9.  Install in the reverse order of removal. (See Solar Radiation Sensor Installation Note.)

Solar Radiation Sensor Installation Note

1.  Align the shape of the solar radiation sensor with the shape of the installation hole on the dashboard side, and install as shown in the figure.

ac9wzw00003699
