DTC B113E:12 [POWER LIFTGATE (PLG) CONTROL MODULE]


id0902o8047100

Description

Power liftgate (PLG) rear switch circuit malfunction

Detection condition
•  Power liftgate (PLG) control module detects a short to power supply in the power liftgate (PLG) rear switch circuit.
Fail-safe
•  Stops the power liftgate (PLG) system operation.
Possible cause
•  Power liftgate (PLG) rear switch connector or terminal malfunction
•  Power liftgate (PLG) rear switch malfunction
•  Power liftgate (PLG) control module connector or terminal malfunction

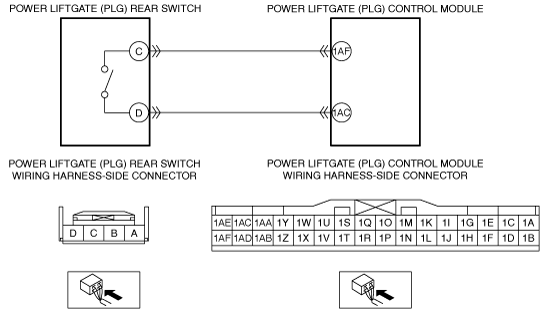

•  Short to power supply in wiring harness between power liftgate (PLG) rear switch terminal C and power liftgate (PLG) control module terminal 1AF
•  Power liftgate (PLG) control module malfunction

Diagnostic Procedure

STEP

INSPECTION

ACTION

1
INSPECT POWER LIFTGATE (PLG) REAR SWITCH CONNECTOR CONDITION
•  Switch the ignition off.
•  Disconnect the negative battery terminal.
•  Disconnect the power liftgate (PLG) rear switch connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 5.
2
INSPECT POWER LIFTGATE (PLG) REAR SWITCH
•  Inspect the power liftgate (PLG) rear switch.
•  Is the power liftgate (PLG) rear switch normal?
Yes
Go to the next step.
No
Replace the power liftgate (PLG) rear switch, then go to Step 5.
3
INSPECT POWER LIFTGATE (PLG) CONTROL MODULE CONNECTOR CONDITION
•  Disconnect the power liftgate (PLG) control module connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 5.
4
INSPECT POWER LIFTGATE (PLG) REAR SWITCH CIRCUIT FOR SHORT TO POWER SUPPLY
•  Verify that the power liftgate (PLG) rear switch and power liftgate (PLG) control module connectors are disconnected.
•  Connect the negative battery terminal.
•  Switch the ignition ON (engine off or on).
•  Measure the voltage at the power liftgate (PLG) rear switch terminal C (wiring harness-side).
•  Is the voltage 0 V?
Yes
Go to the next step.
No
Refer to the wiring diagram and verify whether or not there is a common connector between power liftgate (PLG) rear switch terminal C and power liftgate (PLG) control module terminal 1AF.
If there is a common connector:
•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to power supply.
•  Repair or replace the malfunctioning part.
If there is no common connector:
•  Repair or replace the wiring harness which has a short to power supply.
Go to the next step.
5
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
•  Always reconnect all disconnected connectors.
•  Connect the negative battery terminal.
•  Clear the DTC for the power liftgate (PLG) control module using the M-MDS.
•  Retrieve the power liftgate (PLG) control module DTCs using the M-MDS.
•  Is the same DTC displayed?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the power liftgate (PLG) control module.
Go to the next step.
No
Go to the next step.
6
VERIFY IF OTHER DTCs DISPLAYED
•  Are any other DTCs displayed?
Yes
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
No
DTC troubleshooting completed.
