DTC B1092:11 [FRONT BODY CONTROL MODULE (FBCM)]

id0902p2006900

Description	DRL relay circuit malfunction
Detection condition	• The front body control module (FBCM) detects a short to ground in the DRL relay circuit with the ignition switched ON (engine off or on).
Fail-safe	Not applicable

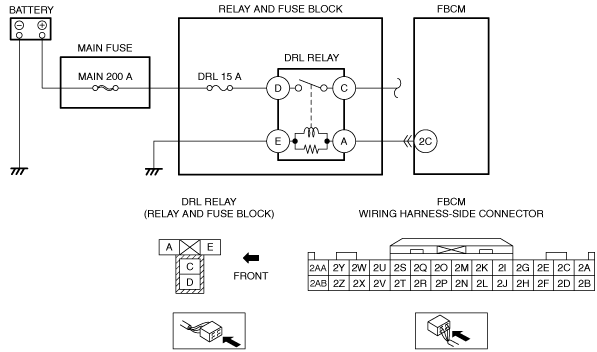

Possible cause	• DRL relay malfunction • Front body control module (FBCM) connector or terminal malfunction • Short to ground in wiring harness between DRL relay terminal A and front body control module (FBCM) terminal 2C • Front body control module (FBCM) malfunction

Diagnostic Procedure

Step	Inspection		Action
1	VERIFY FRONT BODY CONTROL MODULE (FBCM) DTCs AGAIN • Clear the DTC for the front body control module (FBCM) using the M-MDS. (See CLEARING DTC [FRONT BODY CONTROL MODULE (FBCM)].) • Retrieve the front body control module (FBCM) DTCs using the M-MDS. (See DTC INSPECTION [FRONT BODY CONTROL MODULE (FBCM)].) • Is the same DTC displayed?	Yes	Go to the next step.
1		No	Go to Step 6.
2	INSPECT DRL RELAY • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Remove the DRL relay. (See RELAY LOCATION.) • Inspect the DRL relay. (See RELAY INSPECTION.) • Is the DRL relay normal?	Yes	Go to the next step.
2		No	Replace the DRL relay, then go to Step 5. (See RELAY LOCATION.)
3	INSPECT FRONT BODY CONTROL MODULE (FBCM) CONNECTOR CONDITION • Disconnect the front body control module (FBCM) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
3		No	Repair or replace the connector, then go to Step 5.
4	INSPECT DRL RELAY CONTROL CIRCUIT FOR SHORT TO GROUND • Verify that the DRL relay is removed. • Verify that the front body control module (FBCM) connector is disconnected. • Inspect for continuity between front body control module (FBCM) terminal 2C (wiring harness-side) and body ground. • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between DRL relay terminal A and front body control module (FBCM) terminal 2C. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. Go to the next step.
4		No	Go to the next step.
5	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Always reconnect all disconnected connectors. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC for the front body control module (FBCM) using the M-MDS. (See CLEARING DTC [FRONT BODY CONTROL MODULE (FBCM)].) • Retrieve the front body control module (FBCM) DTCs using the M-MDS. (See DTC INSPECTION [FRONT BODY CONTROL MODULE (FBCM)].) • Is the same DTC displayed?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the front body control module (FBCM). (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION.) Go to the next step.
5		No	Go to the next step.
6	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [FRONT BODY CONTROL MODULE (FBCM)].)
6		No	DTC troubleshooting completed.
