DTC B119F:11 [MAZDA ERA-GLONASS CONTROL MODULE]

id0902r6059500

Description

TEL antenna circuit malfunction
Detection condition
•  The Mazda ERA-GLONASS control module detected a short to ground in the TEL antenna circuit for 10 seconds.
Fail-safe function
•  Sends the latest obtained vehicle position data as temporary information in an emergency situation.
Possible cause
•  TEL antenna connector or terminal malfunction
•  Mazda ERA-GLONASS control module connector or terminal malfunction

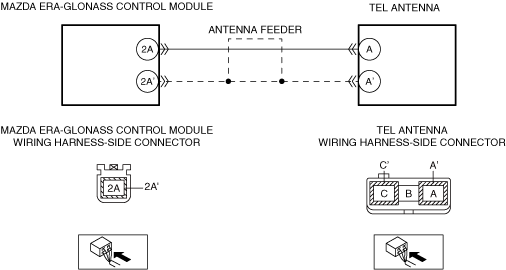

•  Short to ground in wiring harness between the following terminals:
?  Mazda ERA-GLONASS control module terminal 2A and TEL antenna terminal A
?  Mazda ERA-GLONASS control module terminal 2A' and TEL antenna terminal A'
•  TEL antenna malfunction
•  Mazda ERA-GLONASS control module malfunction

Diagnostic Procedure

Step

Inspection

Action
1
INSPECT TEL ANTENNA CONNECTOR CONDITION
•  Switch the ignition off.
•  Disconnect the negative battery terminal.
•  Disconnect the TEL antenna connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 5.
2
INSPECT MAZDA ERA-GLONASS CONTROL MODULE CONNECTOR CONDITION
•  Disconnect the Mazda ERA-GLONASS control module connector.
•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
•  Is the connector normal?
Yes
Go to the next step.
No
Repair or replace the connector, then go to Step 5.
3
INSPECT TEL ANTENNA CIRCUIT FOR SHORT TO GROUND
•  Verify that the TEL antenna and Mazda ERA-GLONASS control module connectors are disconnected.
•  Inspect for continuity between at the following terminals (wiring harness-side) and body ground.
?  Mazda ERA-GLONASS control module terminal 2A
?  Mazda ERA-GLONASS control module terminal 2A'
•  Is there continuity?
Yes
Refer to the wiring diagram and verify if there is a common connector between the following terminals.
•  Mazda ERA-GLONASS control module terminal 2A and TEL antenna terminal A
•  Mazda ERA-GLONASS control module terminal 2A' and TEL antenna terminal A'
If there is a common connector:
•  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to ground to determine the malfunctioning location.
•  Repair or replace the malfunctioning location.
If there is no common connector:
•  Repair or replace the wiring harness which is shorted to ground.
Go to Step 5.
No
Go to the next step.
4
PERFORM DTC INSPECTION AND VERIFY IF MALFUNCTIONING LOCATION IS TEL ANTENNA
•  Always reconnect all disconnected connectors.
•  Reconnect the negative battery terminal.
•  Clear the DTC for the Mazda ERA-GLONASS control module using the M-MDS.
•  Switch the ignition ON (engine off or on) and wait for 25 s or more.
•  Perform the DTC inspection for the Mazda ERA-GLONASS control module using the M-MDS.
•  Is the same DTC displayed?
Yes
Replace the TEL antenna, then go to the next step.
(See TEL ANTENNA REMOVAL/INSTALLATION.)
No
Go to the next step.
5
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
•  Clear the DTC for the Mazda ERA-GLONASS control module using the M-MDS.
•  Switch the ignition ON (engine off or on) and wait for 25 s or more.
•  Perform the DTC inspection for the Mazda ERA-GLONASS control module using the M-MDS.
•  Is the same DTC displayed?
Yes
Repeat the inspection from Step 1.
•  If the malfunction recurs, replace the Mazda ERA-GLONASS control module.
Go to the next step.
No
Go to the next step.
6
VERIFY IF OTHER DTCs DISPLAYED
•  Are any other DTCs displayed?
Yes
Repair the malfunctioning location according to the applicable DTC troubleshooting.
(See DTC TABLE [MAZDA ERA-GLONASS CONTROL MODULE])
No
DTC troubleshooting completed.
