1
|
L.H.D.
• Go to the next step.
R.H.D.
• Go to Step 3.
|
|
2
|
INSPECT WALK-IN SWITCH (RH) CONNECTOR CONDITION
• Switch the ignition off.
• Disconnect the negative battery terminal.
• Disconnect the walk-in switch (RH) connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 7.
|
|
3
|
INSPECT REAR ONE-TOUCH WALK-IN CONTROL MODULE CONNECTOR CONDITION
• Disconnect the rear one-touch walk-in control module connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 7.
|
|
4
|
INSPECT WALK-IN SWITCH (RH) CIRCUIT FOR SHORT TO GROUND
• Verify that the walk-in switch (RH) (L.H.D.) and rear one-touch walk-in control module connectors are disconnected.
• Inspect for continuity between the rear one-touch walk-in control module terminal 2L (wiring harness-side) and body ground.
• Is there continuity?
|
Yes
|

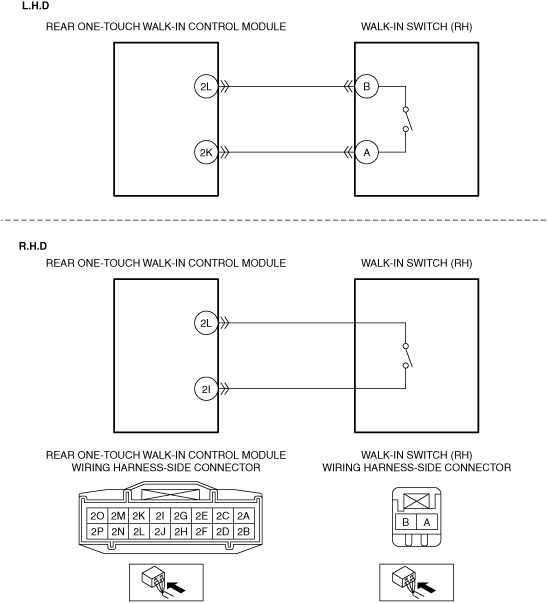

Refer to the wiring diagram and verify whether or not there is a common connector between the following circuits:
• Rear one-touch walk-in control module terminal 2L?Walk-in switch (RH) terminal B (L.H.D.)
• Rear one-touch walk-in control module terminal 2L?Walk-in switch (RH) (R.H.D.)
If there is a common connector:
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
• Repair or replace the malfunctioning part.
If there is no common connector:
• Repair or replace the wiring harness which has a short to ground.
Go to Step 7.
|
|
No
|
Go to the next step.
|
|
5
|
INSPECT WALK-IN SWITCH (RH)
• Inspect the walk-in switch (RH).
• Is the walk-in switch (RH) normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the second-row seat (RH), then go to the Step 7.
|
|
6
|
INSPECT REAR ONE-TOUCH WALK-IN CONTROL MODULE
• Inspect the rear one-touch walk-in control module.
• Is the rear one-touch walk-in control module normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the rear one-touch walk-in control module, then go to the next step.
|
|
7
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Reconnect all the disconnected connectors with the negative battery terminal disconnected.
• Connect the negative battery terminal.
• Clear the DTC for the rear one-touch walk-in control module using the M-MDS.
• Retrieve the rear one-touch walk-in control module DTCs using the M-MDS.
• Is the same DTC displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the rear one-touch walk-in control module.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
8
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
