REAR BUMPER BRACKET REMOVAL/INSTALLATION

id091000030100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See REAR SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

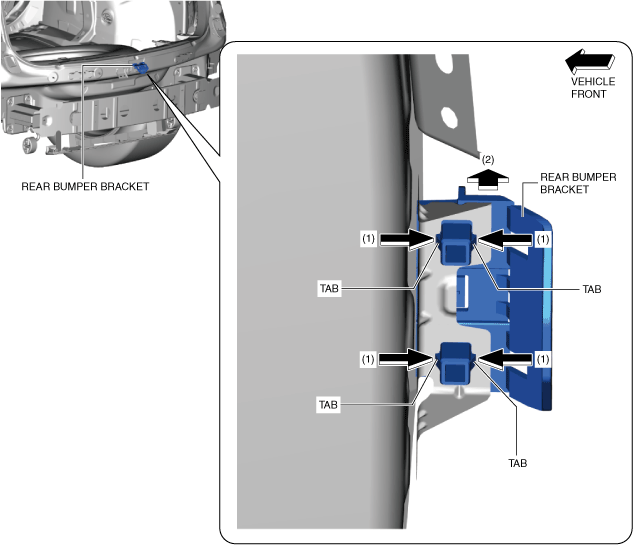

3.  While pressing the rear bumper bracket tabs in the direction of arrows (1) shown in the figure, move the rear bumper bracket in the direction of arrow (2) and detach the rear bumper bracket from the body.

ac9uuw00005777

4.  Remove the rear bumper bracket.

5.  Install in the reverse order of removal.
