REAR BUMPER REMOVAL/INSTALLATION

id091000800700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the rear splash shield. (See REAR SPLASH SHIELD REMOVAL/INSTALLATION.)

Note

•  After removing the rear combination light, temporarily secure the rear combination light short-cord using the tape so that the procedure is performed smoothly.

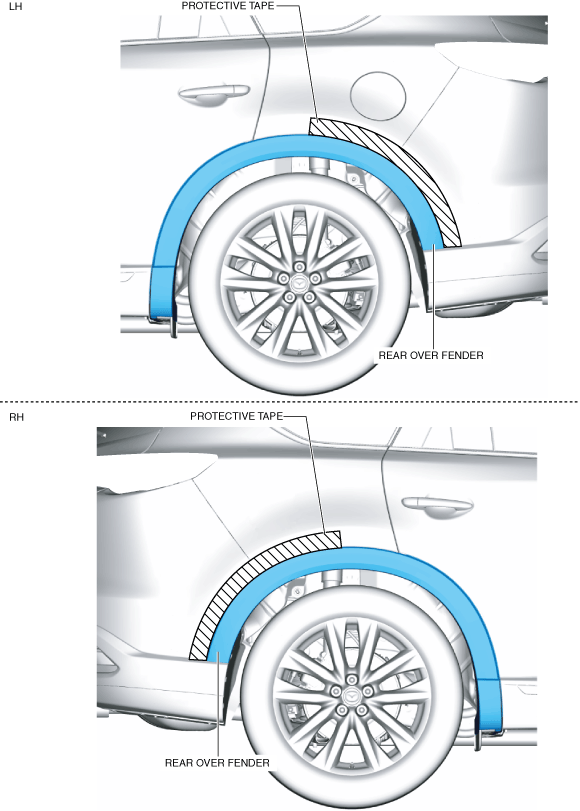

4.  Affix the protective tape to the position shown in the figure to prevent scratches and damage.

ac9wzw00004837

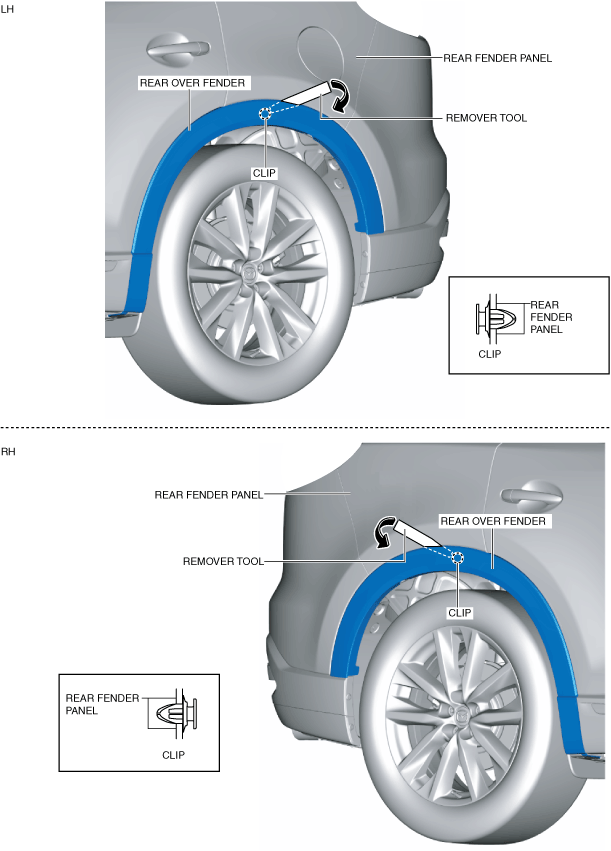

5.  Move the remover tool in the direction of the arrow shown in the figure and detach the clips of the rear over fender from the body.

ac9uuw00005814

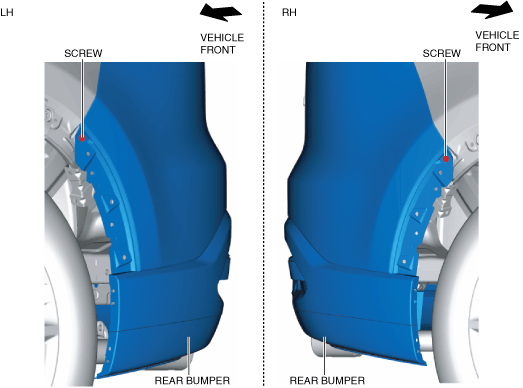

6.  Remove the screws.

ac9wzw00004838

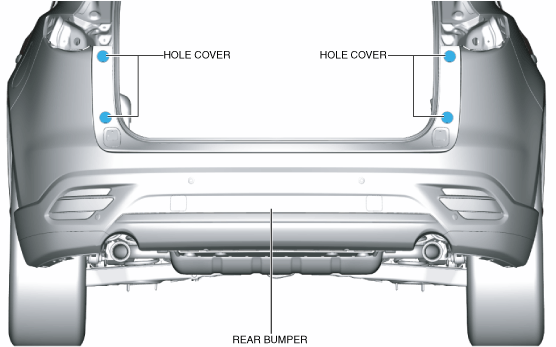

7.  Remove the hole covers.

ac9uuw00005816

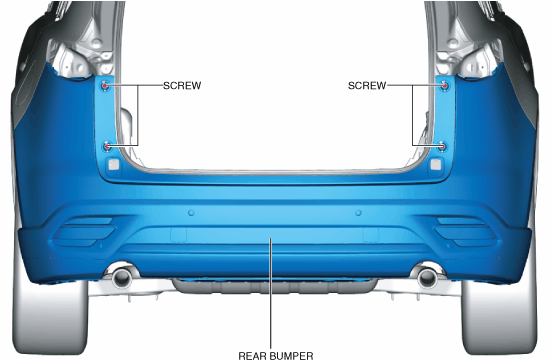

8.  Remove the screws.

ac9uuw00005817

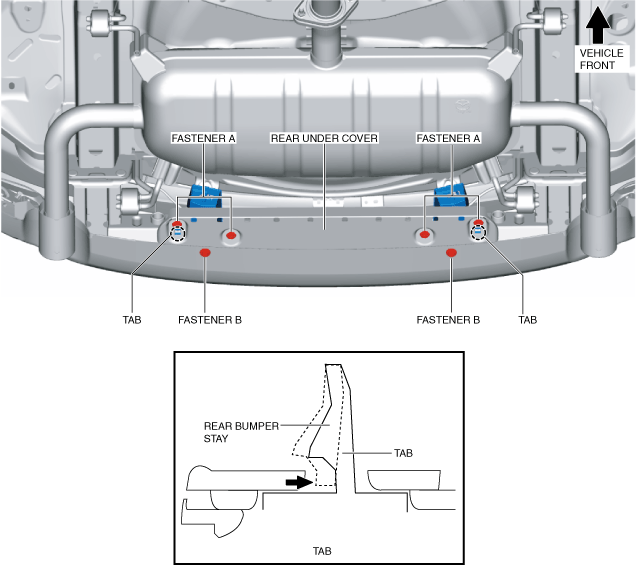

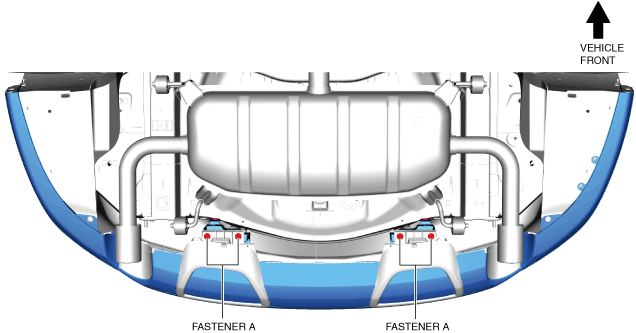

9.  Remove fasteners A.

With rear fog light

ac9wzw00003896

Without rear fog light

ac9uuw00005818

10.  Move the rear under cover tabs in the direction of the arrow shown in the figure and remove the rear under cover. (Without rear fog light)

11.  Remove fasteners B. (Without rear fog light)

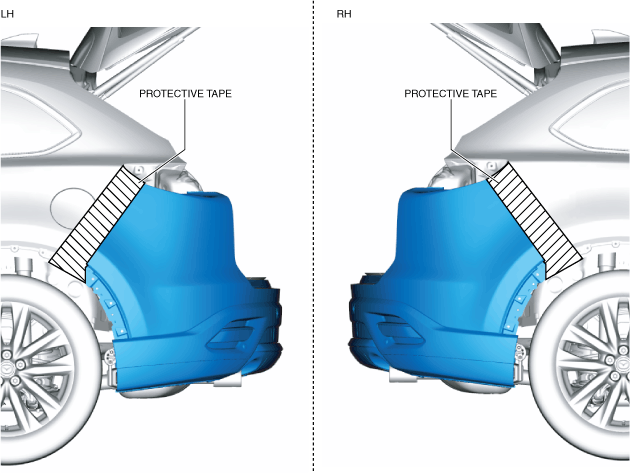

12.  Affix the protective tape to the position shown in the figure to prevent scratches and damage.

ac9uuw00005819

Caution

•  If the rear bumper hooks are detached from the rear bumper slider without supporting the rear bumper, it may fall off and be damaged. Detach the rear bumper hooks from the rear bumper slider using two people, one person supports the rear bumper.

•  Carefully remove the rear bumper from the rear bumper slider. If the rear bumper hooks are detached from the rear bumper slider with excessive force, the rear bumper hooks may be damaged because the rear bumper hooks and the rear bumper slider are engaged firmly.

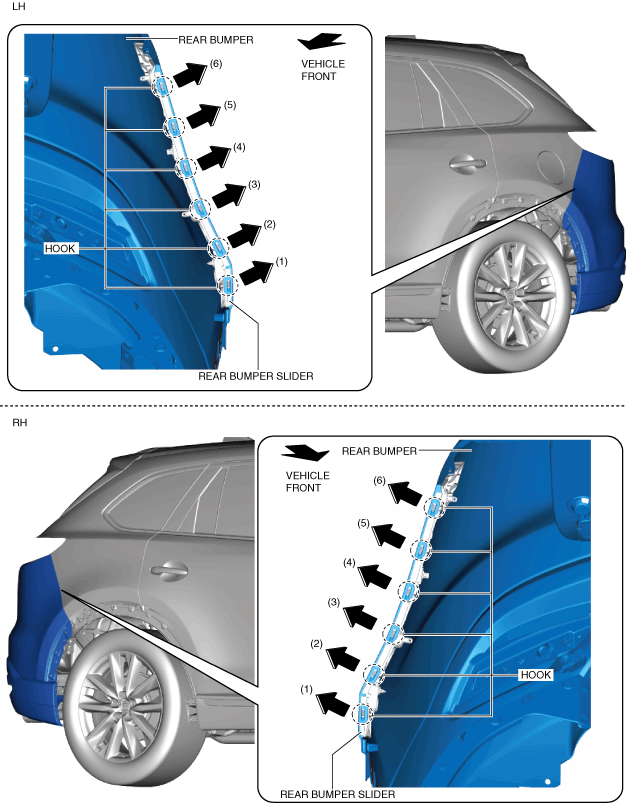

13.  Detach the rear bumper from the rear bumper sliders while holding the rear end of the rear bumper, moving it in the order of the arrows shown in the figure, and detaching the hooks.

ac9wzw00004389

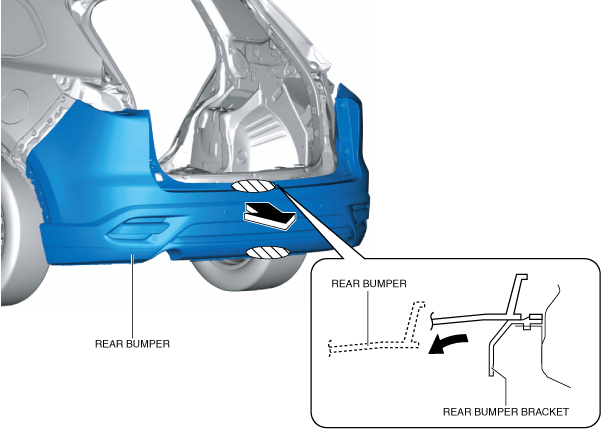

14.  Hold the shaded area shown in the figure, pull the rear bumper in the direction of the arrow, and detach the rear bumper from the body and the rear bumper bracket.

ac9wzw00005616

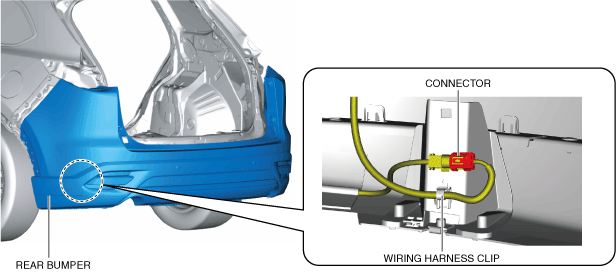

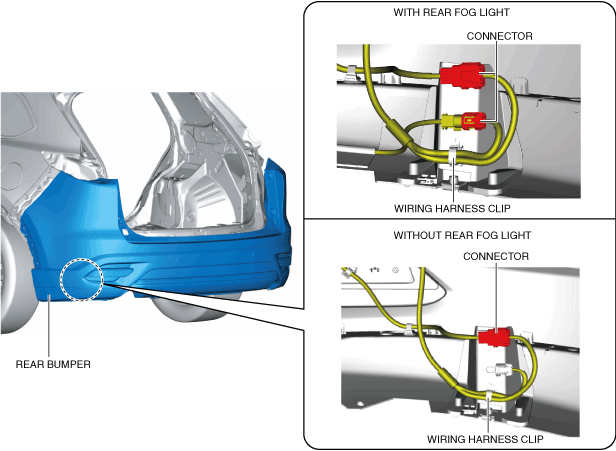

15.  Disconnect the connectors. (With rear fog light or parking sensor system)

With parking sensor system

ac9wzw00003897

Without parking sensor system (with rear fog light)

ac9wzw00003898

16.  Remove the wiring harness clip. (With rear fog light or parking sensor system)

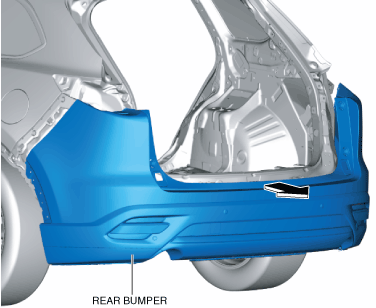

17.  Remove the rear bumper in the direction of the arrow shown in the figure.

ac9wzw00005617

Warning

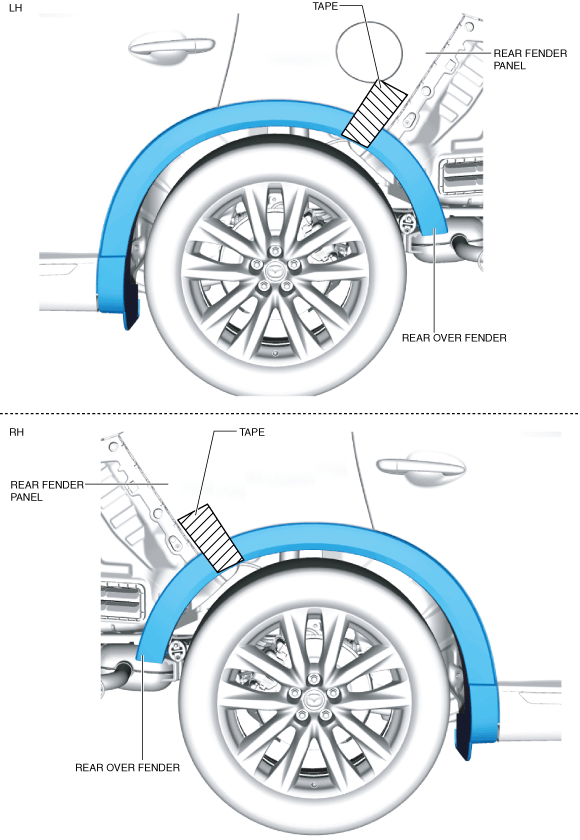

•  After removing the rear bumper, secure the rear over fender with tape to prevent the rear over fender from being damaged and to prevent injury.

ac9uuw00005824

18.  Install in the reverse order of removal.

Caution

•  If the rear bumper installation position is changed or individual differences (coating film/thickness) occur, the blind spot monitoring control module radar angle will deviate which could result in the module not detecting a vehicle approaching from the rear correctly. If the rear bumper is replaced, perform the blind spot monitoring (BSM) radar aiming.

19.  If the rear bumper is replaced, perform the blind spot monitoring (BSM) radar aiming. (With blind spot monitoring (BSM) system) (See BLIND SPOT MONITORING (BSM) RADAR TEST.)
