BONNET REMOVAL/INSTALLATION

id091000407200

Warning

•  Always perform the procedure with at least another person to prevent the bonnet from falling. Otherwise, the bonnet may fall and cause injury.

Caution

•  If a different type of metal such as iron contacts the aluminum panel (aluminum), it could corrode the aluminum. Use exclusive surface finished bolts for the aluminum panel installation.

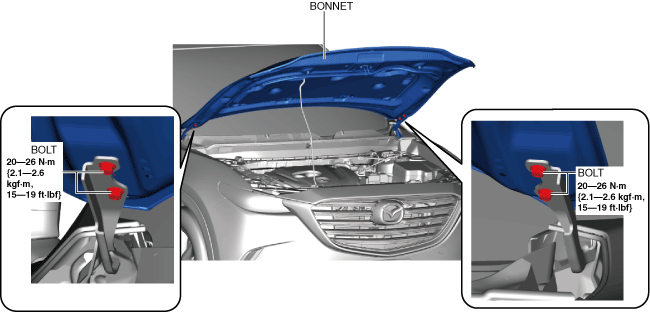

1.  Remove the bolts.

ac9wzw00003889

2.  Remove the bonnet.

1.  Remove the bolts.

ac9wzw00003890

2.  Remove the bonnet hinge.

3.  Install in the reverse order of removal.

4.  Perform the bonnet adjustment. (See BONNET ADJUSTMENT.)
