REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See REAR SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

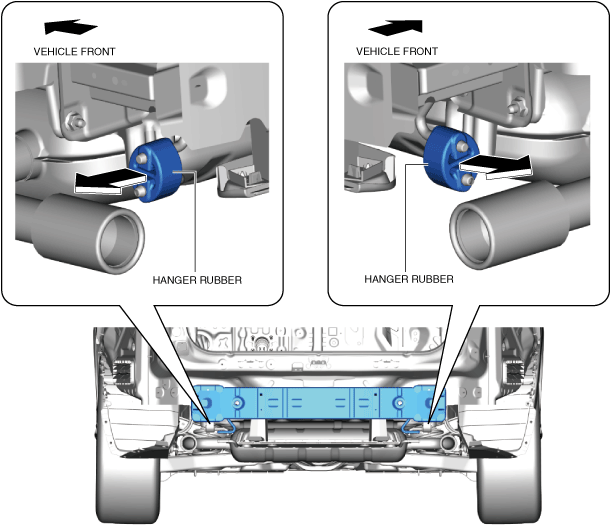

3.  Remove the hanger rubbers in the direction of the arrows shown in the figure.

ac9wzw00005606

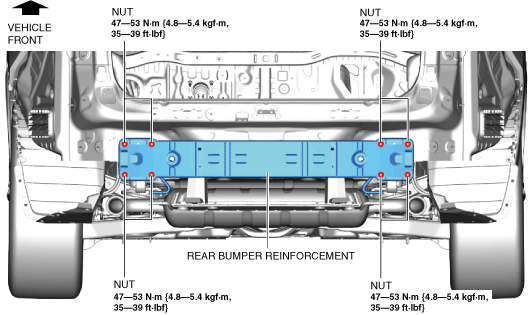

4.  Remove the nuts.

ac9wzw00005607

5.  Remove the rear bumper reinforcement.

6.  Install in the reverse order of removal.
