FRONT FENDER INSULATOR No.1 REMOVAL/INSTALLATION

id091000804100

1.  Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

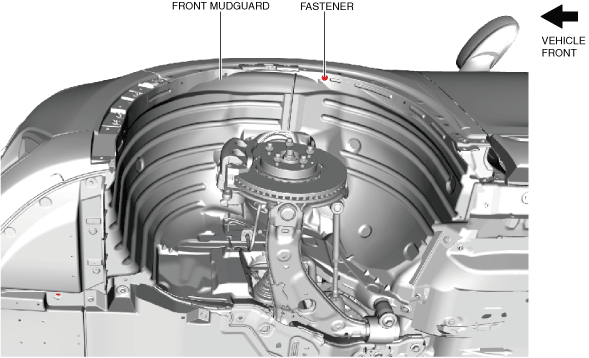

2.  Remove the fastener and partially peel back front mudguard.

ac9uuw00005871

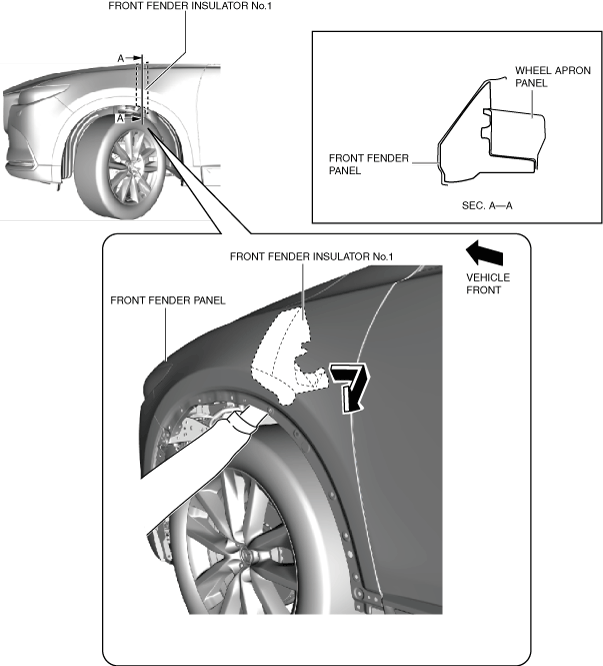

3.  Remove the front fender insulator No.1 in the direction of the arrow shown in the figure.

ac9wzw00004839

4.  Remove the front fender insulator No.1.

5.  Install in the reverse order of removal.
