DOOR AND LIFTGATE PERSONALIZATION FEATURES SETTING PROCEDURE

id091100011500


Power Liftgate (PLG) Fully Open Position Change

Note

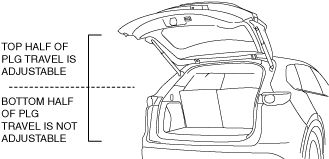

•  Adjustment can only be performed at the top half of power liftgate (PLG) opening.
ac9wzw00005265

1.  Stop the power liftgate (PLG) at the optional position.

2.  Press the power liftgate (PLG) rear switch for approx. 3 s.

3.  Verify that the power liftgate (PLG) buzzer is activated two times.


Power Liftgate (PLG) Fully Open Position Reset

1.  Open the power liftgate (PLG).

2.  Press the power liftgate (PLG) rear switch for approx. 7 s.

Note
•  Although the power liftgate (PLG) buzzer is activated two times after approx. 3 s, this does not indicate an improper procedure. Continue to press the switch.

3.  Verify that the power liftgate (PLG) buzzer is activated three times.


Hands-Free Liftgate (With Hands-Free Liftgate Fuction)

•  For the setting procedure of the personalization features, refer to [CENTER DISPLAY PERSONALIZATION FEATURES]. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
