REAR DOOR SUNSHADE REMOVAL/INSTALLATION

id091200225100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

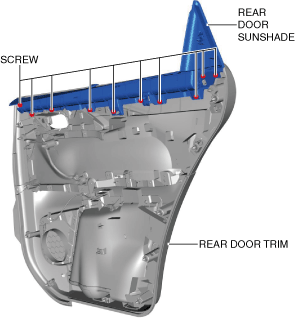

3.  Remove the screws.

ac9uuw00007469

4.  Remove the rear door sunshade.

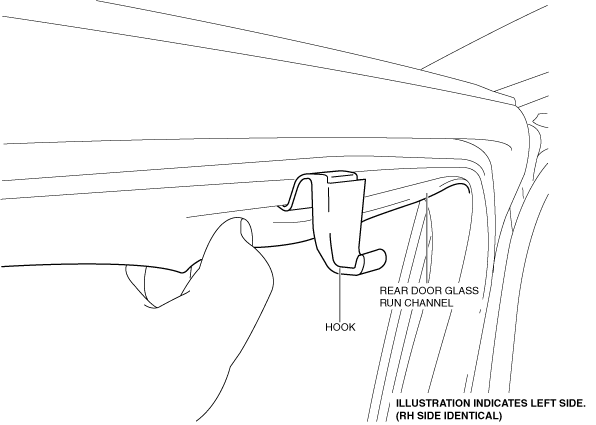

5.  Partially peel back the rear door glass run channel.

ac9uuw00008160

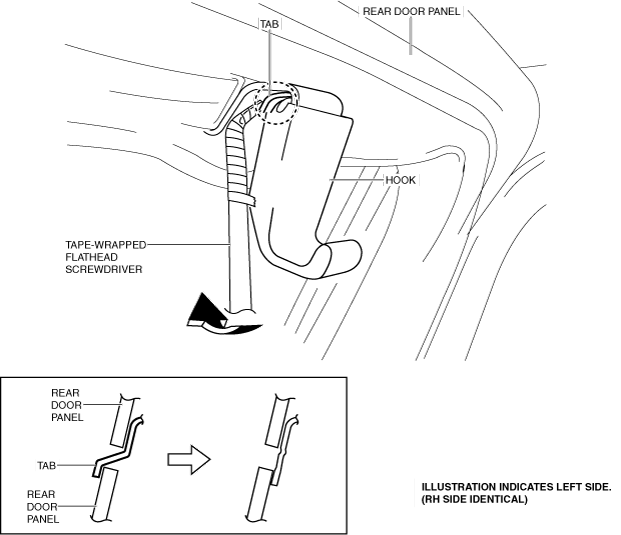

6.  Insert the tape-wrapped flathead screwdriver into the position shown in the figure.

ac9uuw00008161

7.  Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure and detach the tab from the rear door panel.

8.  Remove the hook.

9.  Install in the reverse order of removal. (See Rear Door Sunshade Installation Note.)

Rear Door Sunshade Installation Note

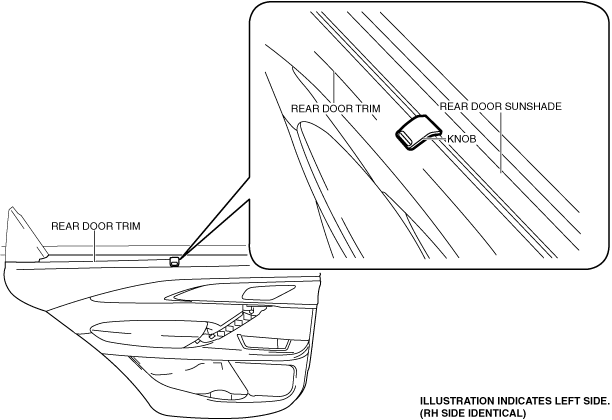

1.  Set the rear door sunshade knob to the position shown in the figure without getting it caught in the gap between the rear door trim and the rear door sunshade.

ac9wzw00003379
